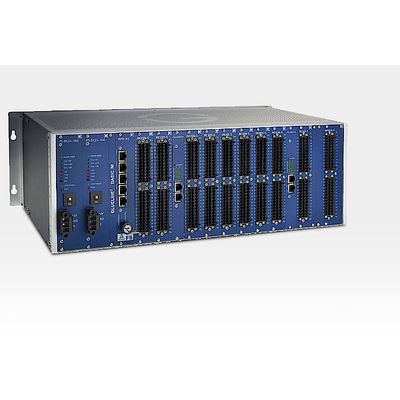

GA BlueLine² - Model Basic /M -Fail-safe, High Performant, Compact System
The control and safety system GA BlueLine² BASIC /M comprises a single or redundant power supply and direct connection capability of field signals using spring clip terminal blocks. It can accommodate up to 12 cards (I/O including CPU), allowing optimization according to project requirements. It is perfect for space-saving assembly on the rear mounting plate.
Most popular related searches
- Rack for up to 12 cards (I/O cards including CPU)
- 2x FS2 data bus with integrated Ethernet
- Assembly: on mounting plate
- Power supply: single or redundant 24VDC power supplies (GA-PS-DC24-150), max. 150W, optional AC power supply, front installation
- Connectors: primarily I/O cards with frontal FKCN-type spring clip terminal blocks, 5mm spacing, wire gauge up to 2.5 mm² Ventilation: built-in active fans below the cards, replaceable, fan monitoring; replaceable dirt filter under the rack
- Operating temperature range: 0° ... +60°C (+32° ... 140°F)
- Dimensions: 180 x 453 x 310 mm (H x W x D)
- Standards: IEC 61508, EN ISO 13849, IEC 62061, IEC 61511, IEC 61131, EN 50178
