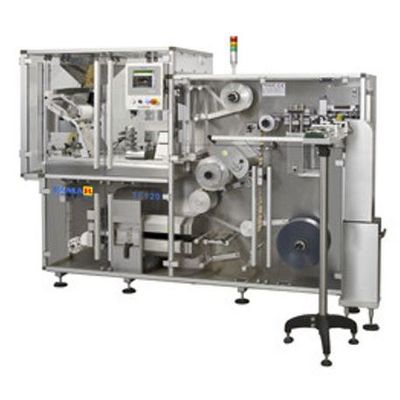

FamarTec - Model TF120 -Automatic Blister Machine
Automatic blister machine, particularly suitable for frequent size changeovers and small batches.
Ultra-compact and easy to fit in small spaces, the TF120 is designed in accordance with GMP standards, with a stainless steel balcony construction and technologically advanced features, despite its small size.
The main working stations, driven by servo motors, make size changeover quick, easy and precise, as all the parameters saved in the panel are set up automatically, without the need to make any manual adjustments.
Operating interface with an intuitive industrial PC that can be managed via remote connection for online technical support.
Blister outfeed belt in line or at 90° for automatic connection to the cartoning machine.
HIGHLIGHTS
- Extremely compact layout
- Ideal for small batches and frequent size changeover
- Remote support capability
ADDITIONAL MAIN UNITS AVAILABLE:
- Vibrating pre-feeding hopper
- Dedicated or universal automatic feeding, depending on the type of product to be packaged
- Camera for blister pack conformity inspection
- Printing of coding/batch number with stamps, ink-jets or other systems
- Automatic ejection of non-conforming blister packs
- Mechanical speed : up to 60 cycles / minute
- Production : up to 180 blisters / minute
- (in accordance with blister dimensions, packaging material and product to be packaged)
- Forming materials : PVC • PVC-PVDC • PVC-PE-PVDC • PVC-ACLAR • PP • PET • COC • OPA-ALU-PVC
- Lidding materials : HARD ALU • SOFT ALU • PAPER-ALU • PAPER-PET-ALU • TYVEK
- Forming area : Pitch 150 mm – Web 160 mm
- Max forming depth : 12 mm
- Motion : SIEMENS
- Installed power : 22 Kw
- Compressed air pressure : 6 bar
- Average compressed air consumption : 200 NL /min
- Machine dimensions (LxWxH) : 2500 mm x 1240 mm x 1840 mm
- Machine weight : About 2.000 kg
