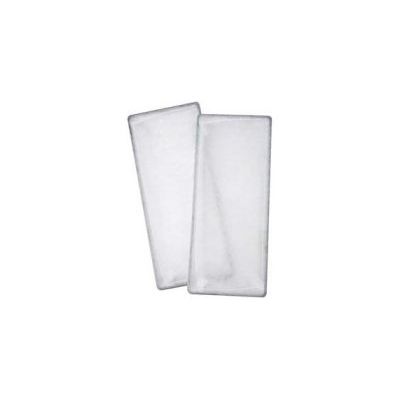

Camfil Farr - Fan Coil Filters

• Available in a wide variety of sizes
• Economical
• Low pressure drop
• Light and robust

• Application: Prevention of dust and dirt build up on heating/cooling coils within ventilation systems.
• Type: Coarse dust removal.
• Frame: Metal with downstream support.
• Media: Synthetic.
• EN779:2012 efficiency: G2.
• Arrestance efficiency: 65%.
• Eurovent 4/5 efficiency: EU2.
• Temperature: 70°C maximum in continuous service.
• Humidity: 100% RH.

Camfil Farr’s fan coil filters are available in most sizes, both standard and non-standard, to fit any air handling unit. The filters are lightweight but still robust, due to the use of a metal wire frame for support. Fan coil filters can be used in most systems because of their low pressure drop.

The product is available in filter class G3 and G4. The filters are also available with M1 fire classification, which is often required by the air handling unit manufacturer.
