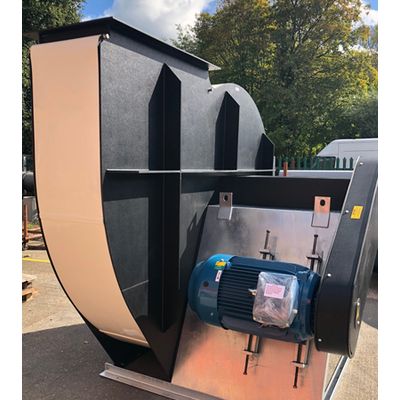

CFC - Model CMV 450 -Fan Unit

The CMV 450 fan unit is fitted with the same design impeller as the CMVeco range, a 20 bladed Radial Tipped Impeller giving efficiencies of up to 70%, these impellers are CNC machined from Heat Stabilized Polypropylene and balanced to ISO1940/1 – G6.3. Fan casings are also CNC machined either from Black Polypropylene or PVC, GRP reinforcement is available as an extra. Duty ranges from 3000m³/hr – 12,000m³/hr with pressures up to 1900Pa and are available in either direct, v-belt or inverter drive versions.
