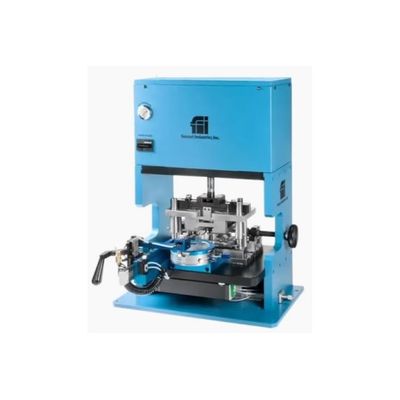

Fancort - Manual Micrometer Flex System
Standard Pneumatic Press, Manual stand off height control Flex tool, centering station and loader. Interchangeable Foot length. Capable of forming Flat packs and Quad packs. Manual Inch/Metric height adjustment. Centering via External Centering station. Loading into the tool via the Loading arm. 80 -100 PSI air required.
Most popular related searches
- Adjustable tip-to-tip length using hand wheel and precision ball screw with digital readout and anti-backlash feature.
- Standard adjustable cut length depending on the part/package size for the standard FLEX is .450" to 3.0" max.
- Standard clearance for side exit parts/packages up to .300" but no more than .150" above and below the forming lines.
- Customs available
- Bottom brazed parts require external centering nests.
- Simple changeover of four die members to vary all critical dimensions for most SMT footprints and packages, including plastic packages and large packages.
- The MAX lead thickness the FLEX can accommodate is .012", round leads, can not be accommodated
- Additional new patent pending #15804667 for new interchangeable spring pack
- The body of the part floats free when the leads are clamped to insure no stress is transferred to the body of the device being formed.
- The Flex System is the most accurate and adjustable tool we make.
- Three models are available. The standard model processes packages with body length up to 2.000", the large model up to 3.000", and JEDEC system for plastic packages with short shoulders.
- Special "Tall Flex" for thick package bodies like the thick Maxwell parts.
- Plated to prevent rusting
- Dedicated Quad Pack Nest with Castellations
