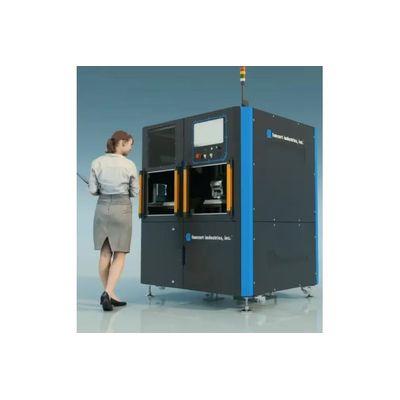

Fancort - Robotic Tinning Machine

The Fancort Tinning Machine combines the capabilities of a precision 6-axis robot with an easy to program parameterized environment which includes part, tray, and process libraries. Custom parts, trays, and processes are easy to program using the built in HMI. Bar code recipe and tray verification is included to match trays, parts, and process together ensuring quality and consistency. Infeed component trays are easily programmed using a tray position function and can be enhanced with an optional vision system.

The Fancort Robotic Tinning Machine`s PLC interface offers a remarkably user-friendly experience for part selection and parameterization, catering specifically to both Fine Pitch (FPs) and Quad Flat Packages (QPs). Its programming has been intelligently designed to streamline the process, ensuring that operators can effortlessly configure and adjust parameters according to their specific requirements. The intuitive interface empowers users with a simplified workflow, making it easy to select parts and customize parameters, ultimately enhancing operational efficiency. Even for those new to PLC programming, the Fancort Robotic Tinning Machine`s interface stands out for its simplicity and ease of use, facilitating seamless control and optimization of the tinning process for FPs and QPs.

• 6-Axis robot - precision with (3) dip motions – tangent, waterfall, & parallel.
• Dual Process - Dual solder pot, pre-heat, air dry, flux, and DI wash in a single machine.
• Integrated air knife preheat - Patent pending air knife pre-heat station.
• Parametric programming - process programming made simple.
• Recipe, part, process, and tray libraries - saving and recalling programs straight forward.
• Bar code - select recipe and trays to reduce the chance for setup errors.
• Universal adjustable trays - patent pending adjustable trays. Eliminates dedicated trays.
• Dynamic solder pots - stainless steel (lead solder) or titanium solder pots (lead free solder).
• Solder Pot Cart - Includes (1) solder maintenance cart for solder pot removal.
• Machine controls - for enhancing programming, safety, power, and pneumatics.
• Steel safety enclosure with light curtain(s), light tower, HMI, control cabinet.
• Access control - Multi-lever user sign in
• Process monitoring - Resistivity, temperatures,
• Process Camera – view tinning in situ.
