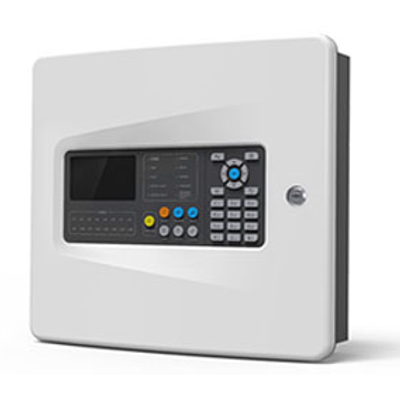

Fanhai Sanjiang - Model SEC1000 -Fire Alarm Control Panel
The purpose of the SEC1000 Fire Alarm Control Panel (FACP) is to monitor input signals, give indications and possibly activate outputs as programmed. It is designed to comply with EN 54-2 with qualities of simple installation, operation and easy maintenance. The SEC1000 panel is an addressable fire detection panel with 1 loop of 120 addressable points and expansion capabilities. It is compatible with other peripherals made by Sanjiang with its own protocol.
Most popular related searches
fire alarm control panel
fire alarm control
fire alarm
fire control panel
fire alarm panel
fire alarm system
fire panel
fire detection
addressable fire panel
- Up to 120 addresses on one loop.
- The loop supports class A and Class B types.
- An easy to read, 4.3"color screen LCD with a resolution of 480×272.
- Zone indicators for 16 zones gives a quick indication of the location of an alarm.
- Record capacity of 1000 historical events for each of historical fire, historical fault and historical operation.
- An independently programmable conventional sounder circuit output.
- Integral power supply and battery.
- Flexible and intuitive cause and effect programming on front panel.
- Zone test, point test and module start/stop testing facilitate the commissioning.
- U-disk interface makes the load and save of configuration or historical data convenient for system commissioning and maintenance.
- Hierarchy management with three access levels.
- Anti-tamper protection by a key lock.
- CAN bus for interconnection of up to 20 FACPs.
