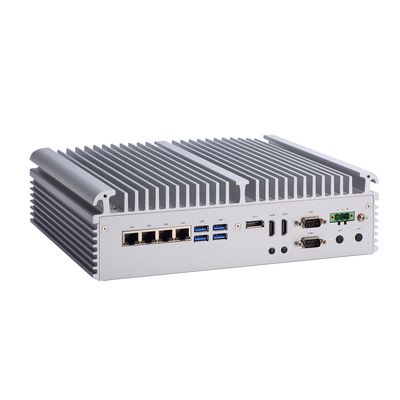

ATX - Model eBOX671A -Fanless Embedded System

SHARE

Fanless Embedded System with LGA1200 Socket Intel® Xeon®, 10th Gen Intel® Core™ i9/i7/i5/i3 or Celeron® Processor, Intel® W480E, 2 HDMI, DisplayPort, 6 USB, 4 LAN, and 9 to 48 VDC


  • LGA1200 10th gen Intel® Xeon®/Core™ i9/i7/i5/i3 or Celeron® with Intel® W480E chipset (Comet Lake-S)
  • Dual 2.5" SATA HDD drive bays with RAID 0 & 1
  • 2 HDMI and 1 DisplayPort for triple view
  • TPM 2.0 onboard
  • -40 °C to 70 °C wide range operation temperature
  • Wide range power input from 9 to 48 VDC
  • 4 GbE LAN with optional PoE supported
  • Two 10GbE LAN (X550-T2) by request
CPU
  • LGA1200 socket Intel® Xeon®/10th gen Intel® Core™ i9/i7/i5/i3 or Celeron® processor (35W/65W)
Chipset
  • Intel® W480E
System Memory
  • 2 x 260 pin DDR4-2933 ECC*/non-ECC SO-DIMM, up to 64GB
  • ECC memory is available with Intel®Xeon® processor
BIOS
  • AMI
COM
  • 2 x RS-232
  • 2 x RS-232/422/485
USB
  • 5 x USB 3.2 Gen2
  • 1 x USB 3.2 Gen1
Ethernet/PoE
  • 4 x GbE (PoE) (3 x Intel® I210-IT, 1 x Intel® I219-LM)
Display
  • 2 x HDMI 1.4b (lockable)
  • 1 x DisplayPort 1.2 ++
Digital I/O
  • Optional
Audio
  • Optional
Storage
  • 2 x 2.5” SATA HDD/SSD (up to 9.5 mm height)
  • 2 x mSATA (enabled in jumper setting)
Expansion
  • 2 x Full-size PCI Express Mini Card slot (USB + PCIe + SATA signal)
  • 2 x SIM slot
  • 1 x M.2 Key B 3050 (for 5G)
Others
  • TPM 2.0
  • 1 x Flexible I/O window
  • 5 x Antenna opening
  • 1 x Power button
  • 1 x AT/ATX quick switch
  • 1 x Remote switch
  • 1 x Reset button
Power
  • 9 to 48 VDC
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -40°C to 70°C (40°F to 158°F W.T. DRAM & SSD, CPU TDP 35W)
  • -40°C to 60°C (40°F to 140°F W.T. DRAM & SSD, CPU TDP 65W)
Relative Humidity
  • 10% - 90%, non-condensing
Vibration
  • IEC 60068-2-64 (w/ SSD: 3Grms STD, random, 5 - 500 Hz, 1 hr/axis)
Shock
  • IEC 60068-2-27 (w/ SSD: 50G, half-sine, 11 ms duration)
Dimensions
(W x D x H)
  • 280 x 210 x 80.5 mm (11.02" x 8.26" x 3.16")
Weight (net/gross)
  • 4.9 kg (10.8 lb)/7 kg (15.43 lb)
Certifications
  • CE, FCC Class A
EOS Support
  • Win 10 IoT, Linux
Software Support
  • AXView
Mounting
  • Wall mount kit
  • DIN-rail kit
