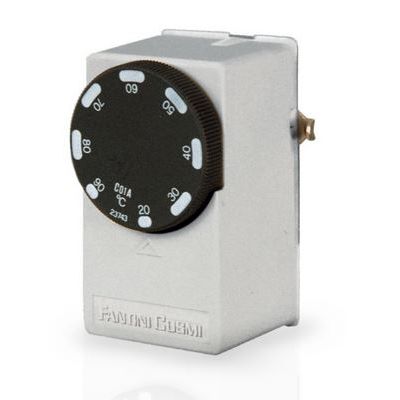

Fantini - Model C01 -Strap-on Pipe Thermostat
Thermostat to control water temperature in heating pipe installations, for example to switch-off the circulation pump when the water temperature has dropped or to switch-on the air heater when the water temperature reaches the set value.
Most popular related searches
temperature monitoring
pipeline locating
water heating
water control
EN standard
digital temperature controller
water piping
water pipe
General features
- Sensing element with stainless steel diaphragm, including support with hooks for the elastic metallic tape (included in the
package). - Base, cover and knob in shock-proof self-extinguishing thermoplastic material V0.
- Electrical connection output with PVC cable gland.
- Storage and transport temperature: -35 ÷ 120 °C.

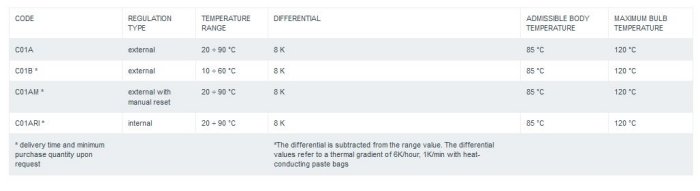

- Differential 8 K (the differential is subtracted from the range value, the differential values refer to a thermal gradient of 6K/hour)
- Unit weight: 0,16 Kg.
- Protection level: IP40.
Electric features
- Two directions microswitch of instant action with AGcdO contacts.
- Contact parameters in compliance with EN 60730-1: 15(6)A 250V~50Hz.
Homologation
- Compliance with standards EN 60947-5-1, EN60730-1;
- Compliance with Directive 2014/68 / EC (PED);
- ENEC certificates.
Installation and use
- Installation on the pipeline through the elastic metallic tape, supplied with a length of 26 cm.
- Heat-conducting metallic paste for heat exchange improvement (on request).
- When the temperature increases: 1-2 are opening, 1-4 are closing.
- Liquid expansion function.
- Temperature measurement by means of the direct contact located between the pipeline surface and the sensing element (may be used a heat-conducting metallic paste, available on request).
