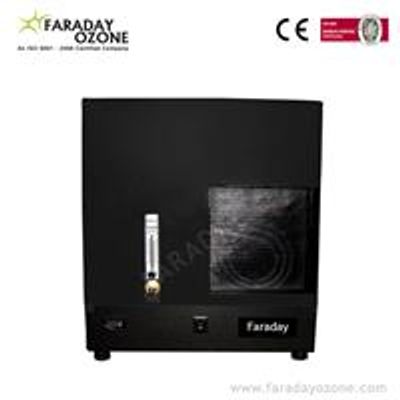

Faraday Ozone - Model OX-I-5 -Large level Industrial Oxygen Concentrator
The OX-I -5 Series Oxygen Concentrator is completely self-contained, and its overall design is built for 24 hour operation. The total industrial strength and quality of the OX-I -5 Series will provide the end-user with years of dependable reliable, and maintenance-free operation.The OX-I -5 Series is built on a powder coated steel frame/chassis. Its internal air compressor, aluminum sieve beds with state-of-the-art molecular sieve material, filtration and flow of control systems are designed for years of operation. Each OX-I -5 Series goes through rigorous quality control testing procedures. The OX-I -5 Series is available in 120 V, 60 Hz, 220-240 V, 50 Hz models for use worldwide!Most popular related searches
industrial oxygen concentrator
oxygen concentrator
molecular sieve
flow control system
environmental design
flow control
material flow control
Features:
- Reliable oxygen production
- Rugged, environmentally tolerant design
- Compact & lightweight for maximum design flexibility
- Constant deliver delivery pressure
Technical Specifications:
| Model | OX-I -5 |
| DimensionsL x W x Hwith cover | 450 x 450 x 600 mm |
| Power Supply | 220-240V, 50 Hz |
| Flow90%(+3%/-5%) O2 at: | 12 SCFH5.7 SLPM0.3 m3 /hr24 lb/day |
| Oxygen Delivery Pressure | 9.0 psig0.6 bar470 mm Hg250 in H 0 |
| Weight with cover | 85 lbs38.5 kg |
