A custom 1000 U.S. gallon tank is fully supported by a tank saddle to extend life. A 4' deep box sump helps provide a thorough tank clean out.

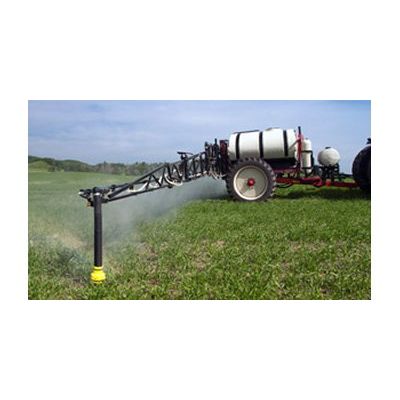

The utility sprayer’s 60' boom is suspended using a coil spring with a self-stabilizing trapeze. The boom suspension allows for a smoother ride in the field and increased application speeds.
Lattice Style Boom
The two dimensional lattice style construction of the boom provides high strength and durability in operation. The front folding boom has a strong and secure rest for safe transport between fields.
Tank size 1000 gallon
Boom length, front fold 60'
Boom height adjust Vertical mast w/single hydraulic cylinder
Boom suspension Spring, gas charged shocks
Tire size 320 (12.4)/85R38
Axle assemblies 88', 120', 144' fixed width axles
(10 bolt hubs)
Pumps Ace FMCSC150-HYD-206 (1 1/2' inlet)
Spray controllers TeeJet 744 fixed rate controller and TeeJet electric boom control ball valves, 3-bank system;
Raven 450 and Banjo electric boom control ball valves, 3-bank system.
Spray boom plumbing Poly wet boom plumbing with diaphragm single nozzle bodies (3/4') on 20' nozzle spacings.
Transport width1 13'
Transport height 10' 3'
Spray boom height 30' - 54'
Wheelbase 11' 2'
Fresh water safety tank 9 gallon
Clean water rinse tank 55 gallon
Chemical eductor system* 5.5 gallon Hypro clean load
Quick fill - Solution tank 2'
Quick fill - Clean water rinse tank 2'
Control panel N/A
Ladder & Service platform Standard
Light kit Standard
Hitch jack Standard
Foam marker system* 15 gallon
Available colors Red / Cream
Green / Yellow
Shipping weight2 4,130 lb
Loaded weight2 12,720 lb
Loaded tongue weights2 960 lb
