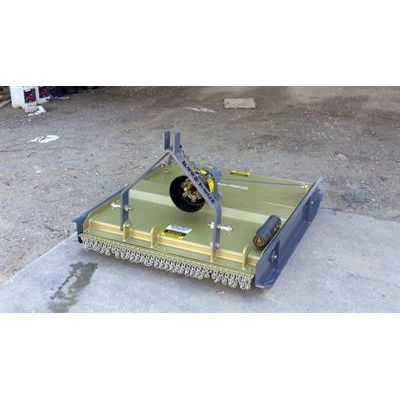

FarmTech - Model E40 - Econo Slasher
Farmtech Econo Slasher’s are the best in any field. Folded 3mm plate top hat design deck for extra strength and durability. 40HP or 50HP gearbox with steel grass guard to protect seal. Reinforced, folded, heavy duty skids. Floating headstock to follow ground contour. Cat 1 – Three point linkage mounting pins.16 mm thickness frame. Offset option standard. Manufacturers 12 month warranty.
-
Most popular related searches
Technical Specification
- BODY: Pressed deck 3mm plate with gear box bolted to a reinforced 12 mm centre plate. All slashers now fitted with front and rear chain guards, as per new OH&S laws.
- HEADSTOCK: All models have Cat 1 – Three point linkage mounting pins.16 mm thickness frame. Offset optional.
- SIDE SKIDS: Adjustable side panels from 0 – 120mm, reinforced for extra strength
- GEAR BOX: 40 HP Gearbox.
- A Grass guard is installed to reduce wrap and protect lower Gearbox oil seal.
- NB: Econo 100 model does not require a clutch ontractors of less than 40hp. Over run clutch must be fitted for tractors with a single stage clutch, e.g. TE20.
- DRIVE SYSTEM: Multi disc clutch 150mm diameter with adjustable spring tension. Fully guarded PTO shaft, heavy duty triangular drive tube.
- BLADE DISC: An Oval blade disc with 2 blade cutting system, standard. Optional – 3 blade rotor.
- BLADES: Drop forged and heat-treated cranked blades to give extra clearance. Swinging on hardened bushes and 19mm high-tensile bolts.
