FAS - Metering Units

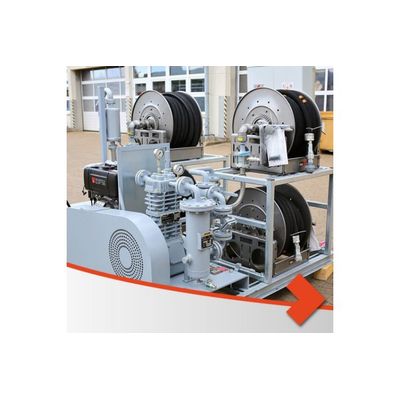

The FAS measuring plants are especially suitable for the refueling process of road tankers, rail tank cars as well as vessels and are available as installation respectively conversion kit, but also completely pre-assembled in cabinet construction for outdoor installation. Depending on customer´s requirement an equipment of measuring system with operator keyboard, printer, hose reel, breakaway coupling, pump unit and data interface for PC connection is possible.
Following measuring systems are available:
Stationary measuring plants with CORIOLIS mass flow meter for LPG terminals for efueling of road tankers, rail tank cars as well as vessels:
- FAS-LPGmass, capacity up to 750 l/min
- PROMASS 80E, capacity up to 5.075 l/min
- PROMASS 83E, capacity up to 5.075 l/min
- PROMASS 84F, capacity up to 5.075 l/min
Stationary measuring plants with mechanical measuring system type LC for LPG terminals for refueling of road tankers, rail tank cars as well as vessels:
- LC MA-5, capacity 45-227 l/min
- LC MA-7, capacity 75-380 l/min
- LC MA-15, capacity 150-757 l/min
- LC MA-30, capacity 265-1.325 l/min
- LC MA-75, capacity 530-2.650 l/min
- LC MA-120, capacity 760-3.785 l/min
Mobile measuring plants with CORIOLIS mass flow meter for road tankers:
- FAS-LPGmass, capacity up to 750 l/min
- PROMASS 80E, capacity up to 5.075 l/min
- PROMASS 83E, capacity up to 5.075 l/min
- PROMASS 84F, capacity up to 5.075 kg/min
Mobile measuring plants with mechanical measuring system type LC for road tankers:
- LC MA-5, capacity 45-227 l/min
- LC MA-7, capacity 75-380 l/min
- LC MA-15, capacity 150-757 l/mins.
