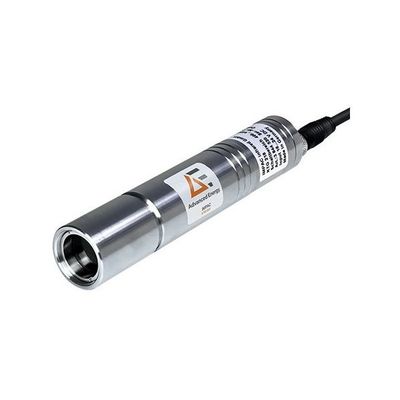

Impac - Model KTS 218 and KTG 218 Series -Fast Infrared Temperature Switches for Noncontact Recognition
Fast infrared temperature switches for hot object recognition. Temperature ranges between 400 and 1500 °C. The non-contact Impac® KTS 218 and KTG 218 infrared temperature switches recognize hot objects within each of their measuring beams. This triggers the switching process. The switch level on each device can be adjusted with a potentiometer and the switch status is indicated by an LED.
Most popular related searches
- 600 µs switch time
- Ten optics to choose from
- White LED target light
- Stainless-steel housing
- Small dimensions
- Adjust switch level via the potentiometer
- Use in compact spaces
- Easily align
- Select from ten optics
- Operational temperature range (°C): 400 and 1500 °C (2 ranges in between)
- Spectral Range (µm): 0.85 and 1.8 (2 ranges in between)
- Measurement Uncertainty (°C): 0.75% oR
- Optics (mm): Fixed optics
- FOV (minimum spot size) (mmm): Min 85:1 (2,5)
- Alignment / Sighting: LED targeting light
- Interface / Output (mA): 30 mA
- Exposure Time t90 (ms): Multiple specifications. Please see Datasheet
- Ambient Temperature (°C): 0 to 70
- Protection Class: IP 65
- Power Supply (mV): 24000
- Emissivity: 1
- Housing: Stainless steel
- CE-label: According to EU directives about electromagnetic immunity
- Wavelength Repeatability (pm): 0.3% oR
