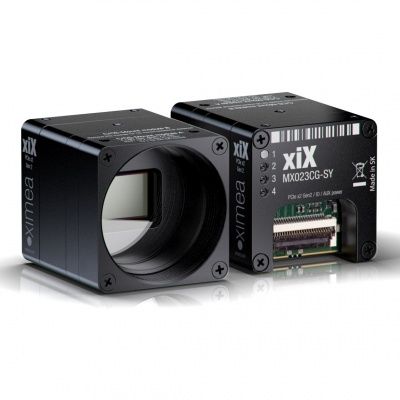

Sony - Model IMX174 -Fast Mono Industrial Camera
Small dimensions: 26 x 26 x 31 mm, 30 grams, 2.3 Mpix Monochrome Sony CMOS Pregius™ at 166 fps @10bit, Flat ribbon flex cable ideal for Multi camera setup and Embedded vision, PCI Express Gen2 Compliant. Full HD camera Applications: Ultra-fast 3D scanning, Miniature and accurate robotic arms, Industrial and Factory Automation, Machine Vision, High definition Motion capture, Cinematography and Entertainment, 360 Panorama, Face recognition, Eye Tracking, Body scanner, People counting, Broadcasting, Sports Automation & Motion Tracking, Rapid process capturing, e.g. golf club swings, baseball, tennis, hockey, VR and AR (virtual or augmented reality), Autonomous drones - UAV (Unmanned Aerial Vehicles), ROV (Remotely Operated Vehicles)
Part Number: MX023MG-SY
Resolution: 2.3 MP 1936 x 1216
Frame rates: 166 fps
Sensor model: Sony IMX174
Sensor type: CMOS Matrix B/W
Sensor size: 1/1.2"
Sensor active area: 11.3 x 7.1 (Diagonal 13.4 mm)
Readout method: Global shutter
Pixel size: 5.86 µm
Digitization: 10, 12
Data interface: PCI Express Gen2 (PCIe)
Dynamic range: 71.7 dB
Full Well Capacity: 30 500 e-
Dark current: 3 e-
Readout noise typ.: 7.36 e-
Signal to noise ratio: 45 dB
Exposure range: 19µs to 30sec, in steps of 4.96µs
I/O Ports: GPIO IN, OUT
Power consumption: 2.9 Watt
Lens mount: C or CS Mount
Weight: 30 grams
Dimensions WxHxD: 26 x 26 x 31 mm
Operating temperature: 50 °C
