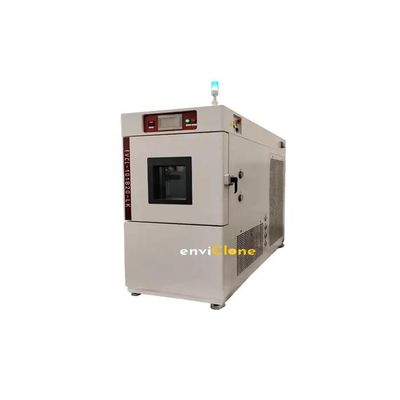

Enviclone - Model EVCL -Fast Ramp Temperature Chamber

FromWuxi Enviclone Test Equipment Co., Ltd.

The Fast Ramp Temperature Chamber simulates an extreme environment in which temperature ramps up and down very quickly in a short time. It is used to test the reliability of electronics, automotive parts, military devices in the temperature fast changing environment, to evaluate the performance of test samples and to improve their reliability.

Most popular related searches

temperature chamber

temperature humidity chamber

With world first class accessories, such as Bitzer compressors, Danfoss solenoid valve, Schneider AC contactor, Omron intermediate relay, Weinview touch-screen controller, Guanya oil separator, Rainbow temperature sensors, etc.
High quality performance of temperature fast changing, to ensure the accuracy of tests.
Fast ramp speed and working room’s dimensions can be customized.
Standardized design and manufacturing, with low breakdown rate and easy maintenance.
Able to continuously work for 10,000 hours.
Test setting, data recording and downloading, programming is easy to learn and use. With Lan port, USB port, etc.
Multiple protections and alarms, safe to dual test chamber itself and humans.
Lower power consumption and noise around 50 dB.
Water recycling design to save water by 90% than previous.
Window is anti-frost for the best observation.
On-site installation service available for huge walk-in fast ramp temperature changing chambers. Full technology support from China for standard medium and small test chambers.
With rich experience in manufacturing and exporting to the world, easy to communicate, saving your time cost.

IEC-60749-25
IEC-60068-2-14 Nb
IEC-61747-5
JESD22-A105-C
SAE-J1211
IPC-9701
GB/T 2423. 1/2/3/4
GJB360.8-2009 (MIL-STD.202F)
GJBl50.3-2009 (MIL-STD-810D)

Enviclone - Model EVCL -Fast Ramp Temperature Chamber

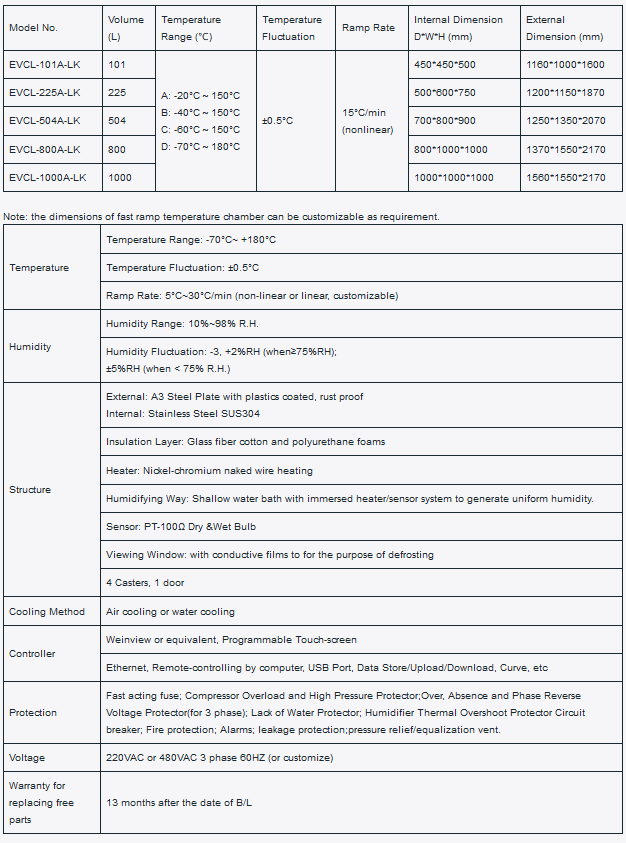

Specification
