Faster - Model UHP 100 -Couplings

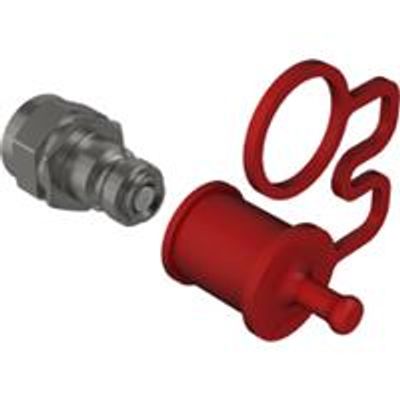

The couplings are designed for ultra high-pressure applications up to 100 MPa (14503.774 psi) with a burst pressure capacity reaching up to 300 MPa (43511.321 psi). These couplings are suitable for various hydraulic tools, including hydraulic bolt tensioning systems, rescue tools, and hydraulic torque wrenches. The product is available in both male and female configurations with sizes of 6.3 mm and 1/4 inch. The female coupling has dimensions of 24 mm (0.94 inch) and 28 mm (1.1 inch) with a length of 62.3 mm (2.45 inch) and a flow rate of 4 liters per minute at 0.2 MPa. The male coupling dimensions include 22 mm (0.87 inch), 25 mm (0.98 inch), and a length of 39 mm (1.54 inch) with the same flow rate specifications. Operating temperature ranges from -25 °C to 100 °C (-13 °F to 212 °F), making them highly versatile and reliable under extreme conditions.
