Watertronics - Model 1-80 -Feed Chemical Injection System Component

Feed line from tank(s) to pumps not included.

MODEL 1-80
One pump system. Variable flow range from 2 to 80 GPH.

MODEL 2-80
Two pump system. Variable flow range from 2 to 80 GPH each.

MODEL 3-80
Three pump system. Variable flow range from 2 to 80 GPH each.

WHYWATERTRONICS?
For more than 30 years, Watertronics? a Lindsay company, has been designing and manufacturing custom pumping solutions for the golf, landscape, municipal, and agriculture markets. It`s our mission to provide the most reliable pumping systems available. Our engineering expertise and advanced software applications have distinguished our pumping systems the industry standard for reliability, ease of use, and energy efficiency.

SEAMLESS CONTROL INTEGRATION

Now you can have a fertigation injection system that is fully integrated into the irrigation pump station controls. The Watertronics EZ Feed Fertigation Injection System integrates seamlessly with our irrigation pump station software. Setup, calibration and programming functions are all accomplished through Watertronics VirtualVision Touch Screen Operator Interface Device and through Watertronics Watervision remote monitoring software package.

GREATER RELIABILITY AT THE HEART OF THE SYSTEM

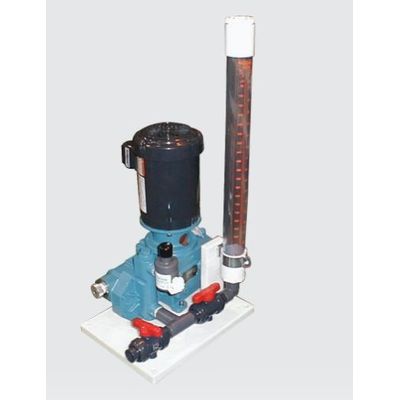

EZ Feed is a high quality, rugged injection pump with adjustable stroke control and oversized motor that insures longer maintenance free, reliable life.

All injection pumps are Alloy 20 material complete with PVC check valve, isolation valve, fitting connections and injection quill. Watertronics utilizes standard AC Induction motors, which provide greater reliability and off-the-shelf availability. Single and dual head proportional feed systems are available with single motor. For greater flexibility, add up to three independent injection pumps, each with an independent Variable Frequency Drive. Option for liquid level transducer is available to provide feedback of chemical tank level display and low liquid level shutdown at the pump station and remotely through your irrigation central computer.

MONITORING MADE EASY
All EZ Feed Fertigation Injection Systems are fully integrated into the Watertronics Watervision remote monitoring software package. Watervision software features remote monitoring and controlling of the injection rate, tank levels, minimum/maximum speed of injection pump(s) and calibration of up to three independent injector pump(s) per station.

At the pump station through Virtual Vision Touch Screen Operator Interface or through Watervision remote monitoring software the user has the ability to set up to three unique lockout periods per day. Also, with Watervision you can set up automatic email report notification, audible alarm indication and change each pump`s injection rate proportional to station flow without having to do so manually.
