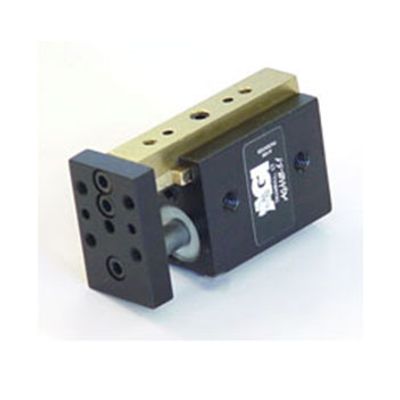

AGI - Model AGMS-1-1 -Feed Escapement - Single Finger
The AGMS-1-1 Feed Escapement - Single Finger is a mini pneumatic actuator designed for automation processes requiring precise control of feed tasks. It features a built-in air cylinder with a T-slot slide design and offers a stroke of 0.5 inches (12.7 mm). With a thrust force of 15 lbs (66.7 N) when extended and 13 lbs (57.8 N) when retracted, the actuator operates effectively at pressures ranging from 20 to 120 PSI (1.4 to 8 BAR). The temperature compatibility ranges from -20°F to 150°F (-28°C to 80°C), and it maintains a low side play of ±0.001 inches (0.03 mm). The actuator is constructed from high-strength aluminum alloys and bronze, ensuring durability and lightweight handling of 2.5 oz (70.1 g). Ideal for precise applications, it supports a maximum payload of 3 lbs (1.3 kg) and operates at speeds between 2 and 12 inches per second (0.5 to 3 m/sec).
- T-Slot bearing support for the carriage and end plate offers superior load bearing performance throughout the stroke.
- Compact lightweight unit with built-in air cylinder.
- Piston seals are U-cup type for long service life.
- Standard built-in stroke adjustment and stroke lock for precise, repetitive operation.
- Hall Effect sensors are available to monitor stroke position.
- Multiple mounting surfaces on the body and endplate with threaded and counterbored holes for easy mounting choices.
- Design: Built-in air cylinder T-slot slide
- Stroke: .5 in adj [12.7 mm]
- Thrust Force @ 80 PSI [5.5 BAR]
- Extended: 15 lbs [66.7 N]
- Retract: 13 lbs [57.8 N]
- Recommended Speed: 2-12 in/sec [0.5-.3m/sec]
- Pressure Range: Low/High 20-120 PSI [1.4-8 BAR]
- Temperature Range: Low/High -20°/150°F [-28°/80°C]
- Side Play: ± 0.001 [.03 mm]
- Maximum Payload: 3 lbs [1.3 kg]
- Material: High Strength, Aluminum Alloys, Bronze
- Weight: 2.5 oz [70.1 g]
- Piston Diameter: .50 in [12.7 mm]
