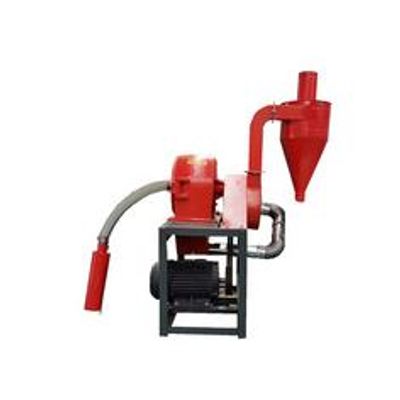

Lima - Model LMFSJ -Feed Pellet Raw Materials Crusher
Feed pellet raw material crusher can crush the raw material of feed pellets into powder to meet the needs of the subsequent pelletizing process. The common feed raw material pulverizers include self-priming disc pulverizers, hammer pulverizers, large-scale drop-type comprehensive pulverizers, and two-in-one pulverizing and mixing equipment.
The self-priming disc mill is mainly composed of the mainframe, motor, feeding straw, grinding disc, screen, dust removal device, etc.
The machine body and the grinding disc rotor together form a crushing chamber. The material is sucked into the crushing chamber through the feeding straw, and under the continuous blowing and rolling action of the upper teeth and flat teeth of the grinding disc, it is continuously crushed until the sieve hole meets the fineness requirements.
Feed pellet raw material crusher can crush the raw material of feed pellets into powder to meet the needs of the subsequent pelletizing process. The common feed raw material pulverizers include self-priming disc pulverizers, hammer pulverizers, large-scale drop-type comprehensive pulverizers, and two-in-one pulverizing and mixing equipment.
The feed raw material pulverizer is an indispensable piece of equipment in the fish food pellet production line and the poultry feed pellet production line. All feed pellet raw materials need to be pulverized before entering the feed pellet machine for the next step of granulation. The raw materials of feed pellets are mainly soybean, corn, wheat, straw, rice husk, etc. The raw materials used for different feed pellets are also different, and users can choose the appropriate crushing equipment according to their actual needs.
The pulverized powdery material is discharged through the discharge port under the action of centrifugal force and airflow, and the discharge port is equipped with dust removal equipment.
Different kinds of feed pellet raw materials crushing equipment
At present, the raw material pulverizers for fish feed pellets and poultry feed pellets mainly include special self-priming disc pulverizers, hammer pulverizers, and large-scale water drop pulverizers, which are commonly used in pulverizing and mixing equipment on production lines.
