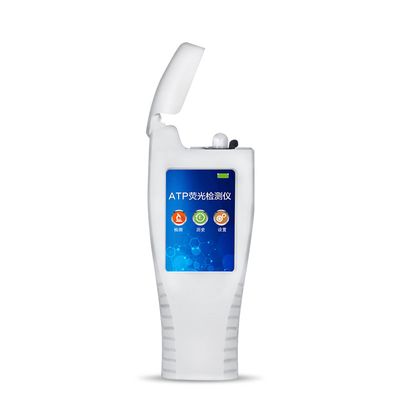

Fengtu - Model FT-ATP -ATP Fluorescence Detector

The ATP swab contains a reagent that can crack the cell membrane, which can release the ATP in the cell, react with the specific enzyme contained in the reagent to generate light, and then use a fluorescent illuminance meter to detect the luminous value. The number of microorganisms is proportional to the luminous value. Since all living cells contain a constant amount of ATP, the ATP content can clearly indicate the amount of microorganisms and other biological residues in the sample, which can be used to judge the health status.

Practical——The upper and lower limits can be set according to the environmental detection requirements, so as to achieve rapid data evaluation and early warning, and rapid screening of surface cleanliness.
High sensitivity - 10-15 ~ 10-18 mol
Fast speed - more than 18-24 hours for conventional culture method, and ATP only takes more than ten seconds.
Feasibility - There is a clear correlation between the number of microorganisms and the ATP contained in microorganisms . By detecting the ATP content, the operability of the number of microorganisms in the reaction can be obtained indirectly
- the traditional culture method needs to be operated by trained technicians in the laboratory; the ATP rapid cleanliness test is very easy to operate, and only needs simple training. On-site operations can be performed by general staff.
Better experience——The test tube adopts a flexible plug-in design, which can be cleaned regularly for long-term use and prolongs the life of the instrument.

1. Display: 3.5-inch high-precision graphic touch screen
2. Processor: 32-bit high-speed data processing chip
3. Detection accuracy: 1×10-18mol
4. Detection range: 0 to 9999 RLUs
5. Detection time: 15 seconds
6. Detection interference: ±5% or ±5 RLUs
7. Operating temperature range: 5°C to 40°C
8. Operating humidity range: 20—85%
9. ATP recovery rate: 90-110%
10. Detection mode: RLU, coliform screening
11. 50 user ID settings
12. the number of limit values that can be set: 251
13. automatic judgment of qualified and unqualified
14. automatic statistical pass rate
15. built-in Self-calibration light source
16. self-test within 30 seconds after startup
17. equipped with miniUSB interface, can upload the results to PC
18. equipped with special software driver U disk instead of traditional CD
19. instrument size (W×H×D): 188 mm×77mm ×37mm
20. Use rechargeable lithium battery without battery replacement.
21. Standby status (20°C): 6 months.
22. Chinese operation manual.
23. Stable
