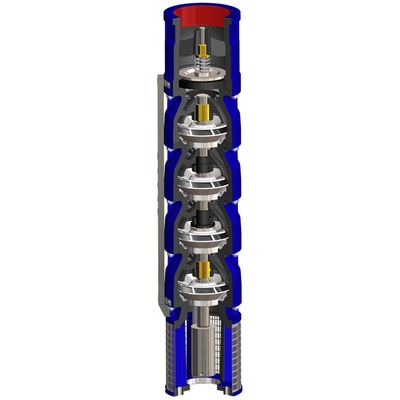

Ferat - Model FDP -Cast Iron Submersible Pump (50 Hz)
Ferat cast iron pump series are designed by Ferat engineers using Computational Fluid Dynamics (CFD) methods. With its modern design, high efficiency and low energy consumption, as well as high quality materials, it ensures the pumps to have long life and high durability.
Most popular related searches
non-return check valve
cast iron submersible pump
cast iron submersible pumps
stainless steel strainer
computational fluid dynamics
steel strainer
fluid dynamics
water pump
check valve
submersible pump
In our company, within wide range of products:
- 6″,7″,8″,9″ and 10″ types,
- From 0 to 300 m³/h capacity range,
- At 50 Hz (2900 rpm ) and 60 Hz (3450 rpm) frequencies and speeds,
- The production of clean water pumps operating at a maximum head of 600 m is made.
All pumps before shipment; they were subjected to the necessary tests according to the definitions of the standards.
In the products; “Superior Technology and Low Energy Consumption” are given importance.
Diffuser
iffusers made of cast iron, bronze and stainless steel are the parts that allow the water coming from the impeller to pass to the upper impeller and that they are bearing to the impellers.
Stop Ring
It is the part that during the first operation of the pump to prevents the upward movement from damaging the fan group.
Bearings with Sand Channels
All bearings are water-lubricated and have a squared shape enabling sand particles, if any, to leave the pump together with the pumped liquid.
Valve Casing
The valve casing is made of cast iron, bronze and stainless steel in one piece and provides a secure and sturdy connection of the pump to the column group. There is also a non-return check valve inside the pump when it stops.
Coupling
Coupling made of stainless steel is the coupling part which transfers the shaft power of the motor to the pump shaft. It is produced in accordance with NEMA standards.
Suction Case
The suction case made of cast iron, bronze and stainless steel in one piece offers a more durable and reliable structure to the pumps with its superior design.
Strainer
Stainless steel strainer is a piece of suction equipment mounted on the suction chamber to prevent large parts from entering the pump.
Impeller
Impellers made of cast iron, bronze and stainless steel are the parts that convert the power received from the pump shaft into flow energy.
