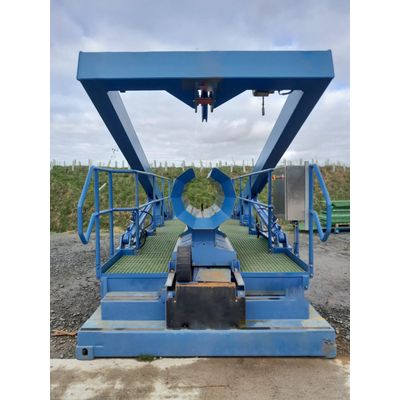

Feritech - Model FT0518 5T SWL A-Frame LARS -Combined Piston Corer
The whole system is pre-built and is an ‘out of the box solution’ with a tracked LARS, hydraulic power unit, A-frame and piston corer, all integrated into one unit.
20 ft ISO Container
Footprint
32 A 3Ph + E
Commando socket input
5 tonne SWL
A-Frame
This Corer system is available with an automatic trigger and hydrostatic safety release systems.
The primary advantage of this integrated system is that it can be mobilised rapidly, eliminating the need for an A-frame on the vessel, and allowing for a more efficient deployment and recovery process.
The FT518 Combined Piston Corer LARS is a modular piece of equipment that allows for the deployment and recovery of the Piston Corer, Gravity Corer and Autodrop.
- Rapid Mobilisation
- Sample recovery up to 9m
- Drop on rear track extension, allows for full in-boarding of coring systems including entire barrel length
- A-Frame bolting configuration allows a variety of sheave wheels to be fitted
- As standard extra wide sheave wheel
- 5 tonne SWL A-frame, designed in accordance with DNV-GL
- Built on standard 20-foot ISO container footprint
- Runs from single 3 phase supply – 32A 3Ph + E Commando socket input
- Increased safety for engineers
- Reduced launch and recovery times
- Compatible with Feritech Piston Corer & Autodrop systems
- Reduced manpower required for operation
- Removes the need for A-frame on the vessel
The Feritech combined piston corer LARS, is compatible with the following Feritech Products:
- Gravity Corer – with or without non-return valve
- Piston corer
- Autodrop
Feritech corers combines operational safety with survey efficiency and reliability. Using our range of corers provides improved recovery and less disturbed sediment sample, yields a higher quality result compared to that of a standard gravity corer.
The removable weights allow the unit to be configured for the optimal penetration depending on ground type and requirements. All consumables for these coring devices are standard across the range and can be interchanged with our vibrocorer and gravity systems, ensuring minimal consumable storage required on board the vessel for multidisciplinary surveys.
All our systems work out of the box and can be mobilised within hours onto your vessel ready to start work.
As with all Feritech products we can tailor the product to the individual client.
Please contact us with your exact requirements.
