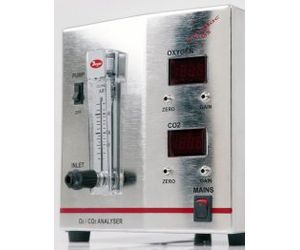

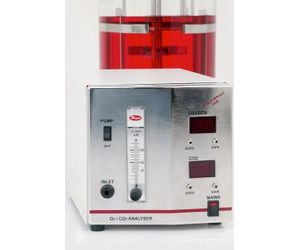

FerMac - Model 368 -Gas Analyser

The FerMac 368 Gas Analyser analyses the amount of oxygen uptake and carbon dioxide production in the outlet gas from your bioreactor or fermenter. Real-time monitoring of CO₂ and O₂ is a valuable tool for the measurement of cell growth within your fermentor vessels. Monitoring these changes can improve productivity by indicating the correct rates for oxygen flow and substrate feed. Using the FerMac 368 Gas Analyser you can also make calculations of respiratory quotient (RQ), oxygen transfer rate (OTR), carbon dioxide transfer rate (CTR), as well as metabolic rate.

The gas analyser can be used with all major makes of fermentors. Applikon, Infors as well as New Brunswick bioreactors and Braun bioreactors are just some of the fermenter manufacturers for which the FerMac 368 Gas Analyser has been supplied.

The FerMac 368 Gas Analyser is both easy-to-use and has a lower cost than other cell growth monitoring systems. It will give you better indication of actual cell growth (live cell activity) than an optical density probe; it is easier to set up than a biomass monitoring probe and has a much lower cost than a mass spectrometer. It can be used with microbial fermentation and most cell culture work.

Simple installation

Although originally designed for use with Electrolab`s fermenter systems, the FerMac 368 can be used with any size or make of bioreactor. Significantly, it doesn’t require complex installation and can be used either as an independent instrument or can be integrated with your existing fermentation software.
