Ferrite - Model WR340 -Waveguide S-Band Microwave Circulators
Ferrite Microwave Technologies manufactures high-power WR340 waveguide circulators, operating in the S-Band for a wide range of applications. For decades Ferrite has delivered state-of-the-art microwave component solutions, and we continue to lead the way with research, development, and finding better ways to fit our customers’ most exacting needs.
Ferrite Microwave Technologies comprehensive line of isolators consists of 3 and 6 kW magnetron protection devices. As a product spotlight, we welcome you to explore the electrical and mechanical specifications of FMT models: SC3-587-03 and SC3-587-04. Both are WR340 waveguide s-band microwave isolators, operating at a center frequency of 2450 MHz.
The following specifications apply to FMT model number SC3-587-03:
Frequency Band: S-Band
Operating Frequency: 2450 MHz +/- 25 MHz
Average Power (FWD & REV): 3 kW
VSWR: < 1.15 (input and output)
Insertion Loss: < 0.2 dB
Isolation: > 23 dB
Coolant: Water or Water Glycol Mix (only load cooled)
Coolant Flow: 2.0 Gallons per minute (only load cooled)
Customer Coolant Fitting: 3/8 ID Push-On barbed fitting (SST) (Load-only) (input and output)

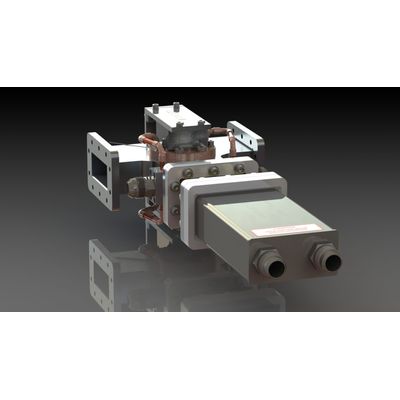

WR340 Isolator
The following specifications apply to FMT model number SC3-587-04:
Frequency Band: S-Band
Operating Frequency: 2450 MHz +/- 25 MHz
Average Power (FWD & REV): 6.5 kW
VSWR: < 1.10 (input and output)
Insertion Loss: < 0.2 dB
Isolation: > 26 dB
Coolant: Water or Water Glycol Mix (load and circulator cooled)
Coolant Flow: 1.5 Gallons per minute (load and circulator cooled)
Customer Coolant Fitting: 3/8 ID Push-On barbed fitting (SST) (input and output)
In terms of S-Band circulators, Ferrite has a range of devices that is unparalleled in the high-power microwave industry. To highlight two of our WR340 waveguide s-band circulators, we welcome you to explore the data of FMT model numbers: SC3-587-01 and SC3-587-02. Both are microwave circulators operating at a center frequency of 2450 MHz.
The following specifications apply to SC3-587-01:
Frequency Band: S-Band
Operating Frequency: 2450 MHz +/- 25 MHz
Average Power (FWD & REV): 3 kW
VSWR: < 1.15 (input and output)
Insertion Loss: < 0.2 dB
Isolation: > 23 dB
High Power S-Band Circulators
The following specifications apply to SC3-587-02:
Frequency Band: S-Band
Operating Frequency: 2450 MHz +/- 25 MHz
Average Power (FWD & REV): 6.5 kW
VSWR: < 1.10 (input and output)
Insertion Loss: < 0.2 dB
Isolation: > 26 dB
Coolant: Water or Water Glycol Mix
Coolant Flow: 1.5 Gallons per minute
Customer Coolant Fitting: 3/8 ID Push-On barbed fitting (SST) (input and output)
