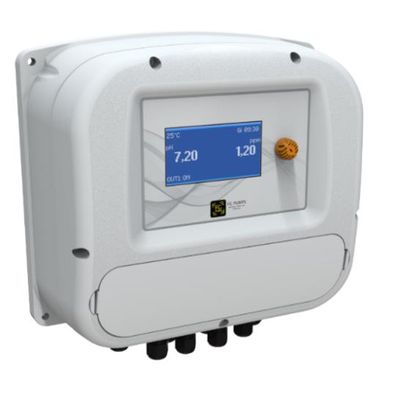

FG D SERIES - Model AE Start + -Multi Parametric Controller and Analyzer System

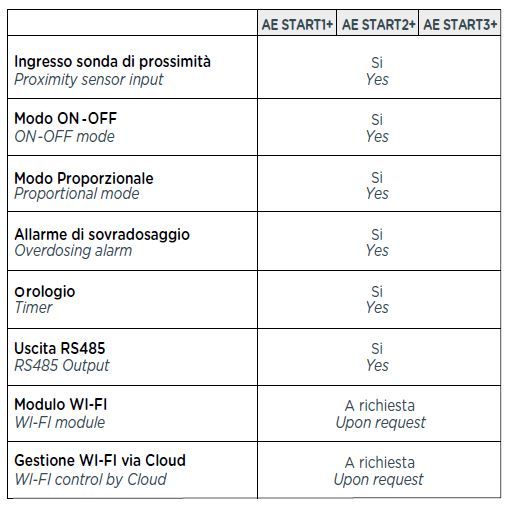

Multi parametric measuring units for control and regulation of chemical-physical water parameters such as pH, Redox (ORP), free Chlorine/Total Chlorine and Conductivity. Standard power supply IOO+240Vac. IP55 protection grade casing. 128x64 pixel backlight graphic display, simple user interface by means an encoder. Basic or Expert programming mode. Setpoints with independent adjustment in ON-OFF or Proportional mode. Acid/Alkaline (pH), Oxydant/Reductive (RX), Direct/ inverse (Chlorine/Conductivity) functioning mode. Level probe, proximity sensor and temperature probes (PT100) inputs. RS485 output. 4-20mA proportional outputs with adjustable range by user. Priming mode. Assisted calibration of the probes. Quality verification of pH and Redox probes.

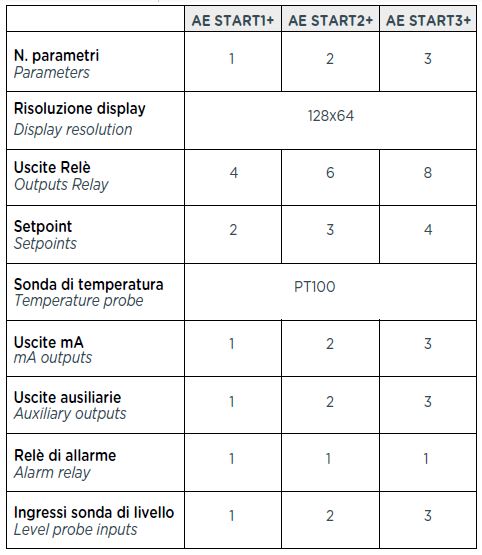

Ad 1 Misura / With 1 Meter

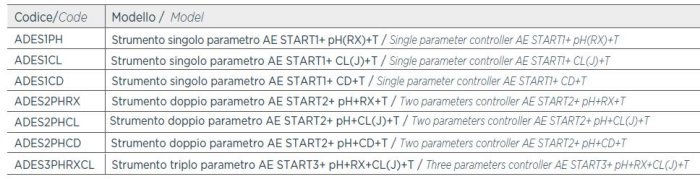

AE START1+ pH(RX)
Single parameter controller for pH (0 f U pH) or Redox (0+± 2000 mV) measurement and regulation.
AE START1+ CL(J)
Single parameter controller for free Chlorine measurement and regulation for open cell amperometric probes Pt-Cu (0 ÷ 10 ppm) or free Chlorine / Total Chlorine membrane type probes (0 ÷ 2000 ppm) with mA or mV input signal.
Single parameter controller for Conductivity measurement and regulation for resistive type probes with K factor K=l, K=5, K=10.
A 2 Misura / With 2 Meter
AE START2+ pH+(RX)
Multi parameter controller for pH (0 ÷ 14 pH) and Redox (0 ÷ ±2000 mV) measurement and regulation.
AE Start2+ pH+CL (J)
Multi parameter controller for pH (0 ÷ 14 pH) and free Chlorine measurement and regulation for open cell amperometric probes Pt-Cu (0 ÷ 10 ppm) or free Chlorine / Total Chlorine membrane type probes (0 ÷ 2000 ppm) with mA or mV input signal.
AE Start2 pH+CD
Multi parameter controller for pH (0 ÷14 pH) and Conductivity measurement and regulation (max 20ms).
A 3 Misura / With 3 Meters
AE Start3+ pH+RX+CL (J)
Multi parameter controller for pH (0 +14 pH), Redox (0 + ±2000 mV) and free Chlorine measurement and regulation for open cell amperometric probes Pt-Cu (0 + 10 ppm) or free Chlorine/ Total Chlorine membrane type probes (0 + 2000 ppm) with mAormV input signal.
