Apollo - Model F -Fiber Coupled Laser Diode Modules
High power and high brightness. Single wavelength and single fiber output. Fiber core diameter 0.05-1.0mm, NA 0.22. Fiber connector output SMA 905 (typical). Wavelength output 780-1530nm. Flexible for system integration. High coupling efficiency. Power output up to 10KW.
We also offer other models not listed above. For more information, please contact us with a model number of your choice.

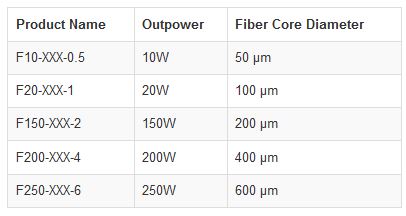

Model Number Breakdown (FY-XXX-Z) F:Model Type: F = Fiber coupled laser diode module Y:Output Power (W): Up to 10kW XXX:Wavelength (nm) *Standard: 808, 915, 940, or 980 nm *Non-standard available. Please inquire. Z:Fiber Core Diameter (in hundreds of microns): 0.05-1.0mm
