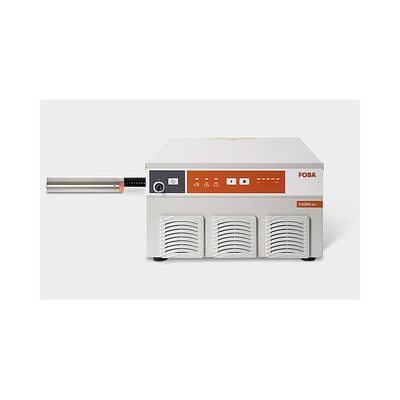

FOBA Titus - Model Y.0X00-xs -Fiber Laser Marker

SHARE

All big things start small. Like Titus™, the smallest laser marking head – a true game changer in its field! Titus™ stands for "tiny tubus" and represents the smallest, most lightweight and easiest-to-install, easiest-to-integrate and easiest-to-operate laser marking head in the world. Titus™ will stay small, because this is what makes him so great. Whenever manufacturing space is at a premium, Titus™ is THE solution. With Titus™, the novel 20 and 30 W vector scanning fiber laser markers are not only incredibly small, but also dramatically simplify integration. Think small. Achieve bigger.

Most popular related searches
laser scanning
clean air
air cleaning
Easy to integrate and to set-up

TitusTM is the new standard for easy laser integration. Anyone who wants to integrate laser markers into limited production environments requires an innovative and flexible system solution: The new Y.0200-xs and Y.0300-xs fiber laser markers, with their tiny TitusTM scan head, demonstrate how simple, fast and efficient laser integration into lines and systems can be achieved.

Innovative Features

  • 0°- and 90°-beam orientations for installation in tight spaces
  • 3 m fiber laser umbilical length for flexible integration and 10 m for more complex setups
  • "clamp`n go" laser head brackets
  • integrated pilot laser and focus finder for quick job setup and focus adjustment
  • wide range of communication protocols and interfaces
Easy to use

The TitusTM fiber laser markers simplify industrial part marking significantly. Customers have the choice between three powerful user interfaces:

  1. FOBA MarkUS GUI for customer-specific interfaces
  2. FOBA Go offers a maximum of flexibility thanks to laser remote controllability via a wide range of terminals.
  3. In addition to FOBA Go, FOBA Draw is also available for motion applications.

Using common communication protocols, the connection to customer software is as flexible as can be.

Simply small

FOBA TitusTM is no small thing! TitusTM is the world`s smallest laser marking head of a vector-scanning marking laser – and the biggest advance in direct component marking. And rightly so, because Titus™ offers the greatest possible integration flexibility and ease of use, higher throughputs and greater savings. TitusTM is up to 90% smaller and lighter than current products on the market and is designed for seamless integration into production environments with minimal space.

Fiber Laser Marking with FOBA Titus™
For the automotive, aerospace and electronics industries in particular, Titus™ opens up new application areas for fast direct part marking with lasers. Thanks to the high integration flexibility, throughput strength and substantial savings potential in operating costs, Titus™ customers can finally fully exploit their marking potential.

Main fields of application: Electronics industry; automobile/ autoparts industry; machine and tool construction; all types of metal markings; production of plastics; markings that are imprinted when the object is stationary or in motion

Available laser systems (fiber marking lasers)
Y.0200-xs/ Y.0300-xs

Marking features
Marking heads:

  • CFS – straight out (0°) beam exit
  • CFT – turned (90°) beam exit

3 precision optics for focusing (S, M, L)

Marking fields:

3 marking fields per marking head (S, M, L)

Marking speed*

Up to 2,000 characters/sec.
Laser

Type:

  • Pulsed Ytterbium fiber laser, 20 W and 30 W
  • Pulse frequency range 1 kHz – 400 kHz
  • Wavelength within 1,040 – 1,090 nm

Laser class:

4 (acc. to IEC 60825-1)

User Interfaces

  • PC UIs FOBA Draw and FOBA MarkUS
  • Browser-enabled Touch Control UI FOBA Go (optionally on FOBA Touch Display)

Interfaces

  • Communication protocols (TCP/IP, PROFINET, EtherNet/IP; EtherCAT and OPC UA to come)
  • Control interfaces (Trigger, Encoder, I/O customer interface)

Supply

Electrical requirements

L/N/PE 100 – 240 VAC, 50/60 Hz

Power consumption

360 VA max.

IP rating
Marking head and umbilical IP65, IP69
Supply unit IP21

Umbilical length:

3 m (20 W and 30W) → 10 m (30 W)

Cooling:

Air-cooled

Cleaning:

Self-cleaning of lens with air blade

Temperature:

5 – 40 °C

Humidity:

10 – 90 %, non-condensing

Weight

  • Titus™ marking heads ~0.64 kg
  • Supply unit with 3 m umbilical 23 kg
  • Supply unit with 10 m umbilical 27 kg

Scope of delivery and Options, accessories

Scope of delivery

  • Fiber laser marker with Titus™ marking head (0°/90°)
  • Fully integrated pilot laser for focus finding and simulation of marking content

Options, accessories

  • Exhaust units
  • Integration brackets
  • FOBA Touch display for FOBA Go U

* Depends on the application
