Galaxy Scientific QuasIR - Model 2000 -Fiber Optic FT-NIR Spectrometer for Lab, Process and Field

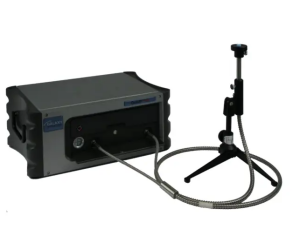

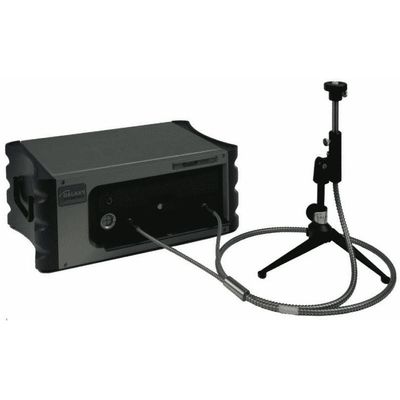

The QuasIR™ 2000 Portable Fiber Optic FT-NIR Spectrometer was designed from the ground up to offer the industry a new kind of NIR analysis solution – a solution that brings together the portability required to move NIR analysis closer to point-of-need, combined with unmatched spectroscopic performance for the fastest and most accurate results. It delivers a wide range of technical innovations including our PermAlign™ interferometer optics, industry leading sampling accessory designs, and new concepts in software and algorithms such as our Advanced-ID™ software for low concentration targeted screening.
The QuasIR™ 2000 fiber optic analyzer was engineered to ensure direct calibration transfer without the frustration of standardizing instruments or adjusting models to accommodate excessive instrument variability. The heart of the QuasIR™ 2000 is our PermAlign™ optics technology, an innovative optical design that maintains alignment and performance under conditions from the routine to the extreme. Our technology and design ensure unmatched consistency and direct methods transfer with no loss in performance so you can expand your QuasIR™ fleet with confidence.
The QuasIR™ 2000 is a versatile design and can be used with different types of fiber optics probe for fast NIR analysis in liquid or solid processes. It can be used at different locations within your plant and process. From incoming materials testing, to NIR analysis in your lab, to instantaneous process monitoring on-line.
- Compact, portable, and high-performance FT-NIR spectrometer with fiber optic probe for lab, field, and on-line applications
- PermAlign™ optics: an innovative optical design that maintains alignment and performance under extreme condition.
- Unmatched instrument-to-instrument consistency and direct method transfer so you can expand your QuasIR™ fleet with confidence
- Automatic Performance Testing Unit provides an easy and automated way to monitor your instruments performance
- Innovative diffuse reflectance probe with patterned fiber layout increases probe reproducibility
- Standard SMA type 905 connectors allow use of many commercial probes
- Spectral Sage™ software suite combines the ease-of-use needed for everyday analysis with feature-rich functions for advanced method developers
- Optional Symbion DX™ and RX™ Process Analytical Software Suite; manages the measurement process during online analysis
- Low Cost of Ownership:
- 20,000-hour user replaceable NIR source
- > 10-year laser life
- > 10-year interferometer drive
- User replaceable desiccant
- Operated by standard Windows™ PC
Hydroxyl number, raw materials purity & confirmation, residual solvents analysis, additives, and monomers analysis
Drug manufacturing, raw materials ID, advanced ID, counterfeit drug screening
Edible oils, meat, dairy, spices, snacks, alcoholic beverages, baked products, non-alcoholic beverages
It is not feasible to list all the industries we serve. Aggregate, mining, and academia are amongst many others. If you are uncertain if our technology can meet your needs, please contact us to discuss the details of your application or to request a feasibility study.
Historically, transferring NIR calibrations from one instrument to another has been a challenging task. One of the greatest advantages of FT-NIR technology is direct calibration transfer. NIR calibration can easily be transferred from one FT-NIR instrument to another even if it is not the same model or made by the same manufacturer.

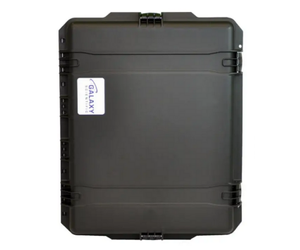

Galaxy Scientific FT-NIR spectrometers combine portability and performance to get the near infrared results you need, where and when you need them. Our robust and compact design is dust proof and splash proof and can be taken outside the lab to the point-of-need. Our near-infrared spectrometers are lightweight with a small footprint and quickly attach to a laptop or tablet computer, can operate from a variety of power sources, and have a rugged design that ensures they can be moved without damage.
Galaxy Scientific’s high-performance FT-NIR technology offers significant advantages such as high spectral resolution, best-in-class signal-to-noise ratio, inherently stable wavelength accuracy, and full spectral range. All models utilize Galaxy’s PermAlign™ Fourier Transform Technology, taking near-infrared instrumentation to the next level by offering incredibly high-performance measurements in a small, portable design. Benefits include permanent interferometer alignment, small & lightweight design, and robust field operation
This compact design allows us to offer “depot service” meaning our products can be easily shipped via standard shipping methods, without the need for a freight shipment. A product can be overnighted to us, evaluated and repaired (if needed) upon receipt and then overnighted back to our customer. This is much cheaper and faster than having to send a specialist to the customer site…
Galaxy Scientific products are designed to be easily installed by the end user and without the need for an expensive on-site product start-up by our experts.
The QuasIR 2000 can also be equipped with a heavy-duty industrial probe for continuous on-line measurement and process monitoring.
