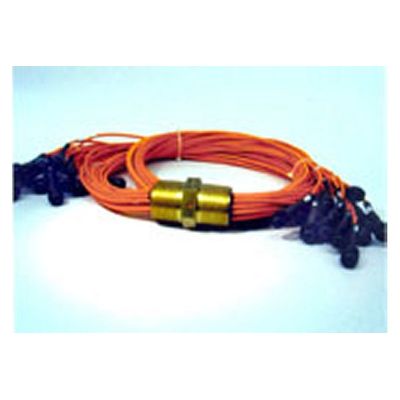

Columbia - Model FOPS 2000 -Fiber Optic Pressure Seals

SHARE

Fiber Optic Pressure Seals are designed to provide a safe, convenient, reliable method of exiting fiber optic data lines through a structure while preserving the integrity of either a pressure or vacuum environment.

Most popular related searches
pressure seal
fiber optic connector
structural integrity
  • Type : Fiber Optic Pressure Transition Seal
  • Channels : 16 single channel fibers total. A minimum of 14 channels shall comply individually to each performance specification in their entirety.
  • Mechanical Configuration : 1.375 inch hex housing threaded 1.0 inch male N.P.T. both ends.
  • Housing Material : Brass
  • Optical Fiber : Ensign-Bickford Type
  • HCNM0200TC01US12,200 Micron Step Index Fiber.
  • Optical Connectors : AMP 501003-4 FSMA epoxy polish connector.
  • Optical Attenuation : (-)6 dB maximum referenced at 820 nm, per channel.
  • Static Pressure : Seal shall withstand 265 psi Helium Exposure for a minimum of 60 seconds.
