Fiber-Reinforced Plastic (FRP) Membrane Housing

With industry best practices and the highest quality standards applied to continuous innovation, Alfa Aerosol FRP pressure vessels feature threaded sideports, a quick lock system, flat sealing and multiporting facilities, fail-safe shells and a single-piece head.

The FRP Membrane Housing are available with 2.5 inch, 4 inch and 8 inch diameters. The membrane housings are available for operating pressures of 300 psi, 450 psi, 600 psi, 1000 psi & 1200 psi, and compliant with ASME Sec X, NSF, and CE.

Alfa Aerosol Membrane Housing vessels are highly suitable for use in desalination processes, including reverse osmosis processes. The Alfa Aerosol Membrane Housing are used in a wide range of demanding applications, such as municipal water treatment, the oil & gas sector including FPSO applications, food & beverage plants, electronics manufacturing, the power industry, wastewater treatment, the mining industry, the pharmaceutical industry, industrial water treatment, the automotive industry and commercial water treatment. Long-term continuous use of the pressure vessels, as well as easy maintenance and serviceability, are key to the global success and brand reputation of ALFA AEROSOL.

The high quality Alfa Aerosol Membrane Housing are used for reverse osmosis and ultrafiltration processes. They are built to maximize the performance of water treatment and purification systems. The vessels are used in industrial, commercial and municipal water treatment applications across the world. Our extensive pressure vessel portfolio guarantees the right specification for each application.

The pressure vessels are widely used for diverse water applications, from industrial water treatment to wastewater treatment, from sea water reverse osmosis to water treatment processes in the Oil & Gas sector

• Available in End Port and Side Port configurations.
• Internal diameter is mirror finished to a tolerance of ±0.1mm facilitating easy loading & unloading of membranes.
• External surfaces are highly polished & coated with high-gloss polyurethane paints for UV resistance & excellent aesthetics.

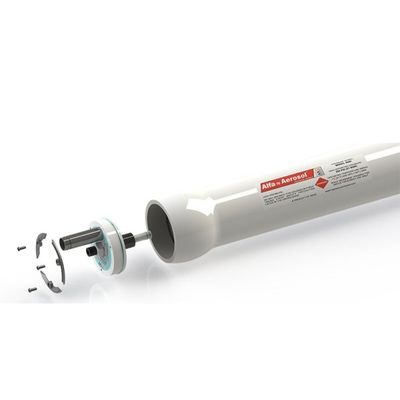

• End Cap assembly comprises of a single piece moulded seal plate, a unique high quality seal ring, a heavy duty aluminium bearing plate and a 3 turn stainless steel locking ring. This unique design facilitates easy removal and insertion of the end cap without any special tools, making it very user-friendly.
• Permeate Port comprises a standard 1” half union . Other options of 1 1/1″ BSP(M) threads and 1″ BSP(F) threads are also available. (NPT threads provided on request).
• Membrane housings are available from 1 element to 8 elements with pressure ratings of 300psi, 450psi, 600psi,1000psi and 1200 psi.
• All models are supplied with saddle and SS straps.
