Fiberfuture - Fiber Optic Pigtail

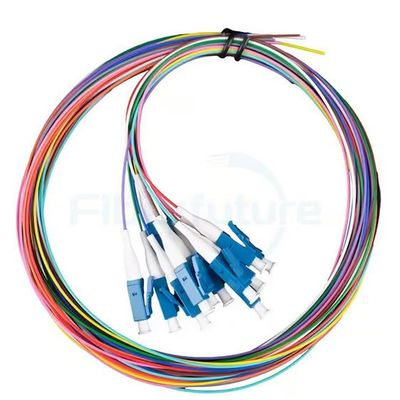

FIBERFUTURE supplies fiber optic pigtails at competitive prices. We offer three primary fiber versions, 9/125um single mode, 62.5/125 multimode and 50um OM3, OM4, and OM5. These fiber pigtails are made with a premium grade jacket with LC, SC, ST, and FC connectors and with typical 0.9mm outer diameter cables. Simplex fiber pigtails and duplex fiber pigtails are also available, with different cable color, cable diameter and jacket types available.
- CATV Networks, Cellular base stations
- FTTH/FTTX, Test and measurement systems
- Telecommunication networks
- Premise installations
- Data processing networks
- Local Area Networks(LANs)
- Wide area networks(WANs)
- Data centers, Telecom switching offices
- One-piece construction & pull-proof design;
- UL-rated plastic housing and boots in a variety of colors;
- Free-floating ceramic ferrule
- Precision anti-rotation key;
- Corrosion-resistant body(nickel-plated brass)
- Telcordia style boots
- 0.9mm, 2.0mm, 3.0mm, or custom cable optional.
FIBERFUTURE offers a variety of custom-made fiber optic pigtails with various connector types, please contact us to find out more.

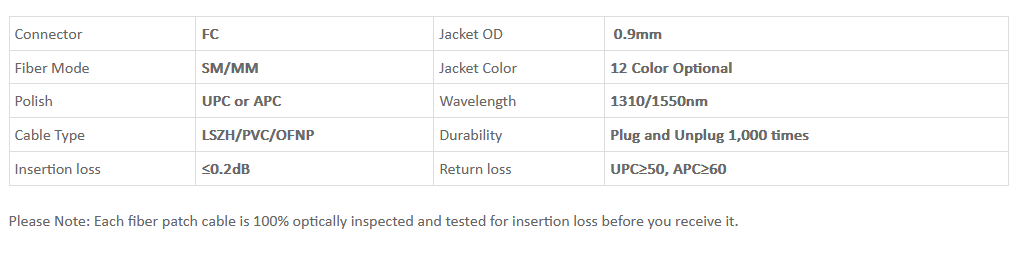

FC fiber optic pigtail complies with IEC, TIA/EIA, NTT, and JIS specifications. The FC connector is with PC, UPC, and APC versions, and both single-mode and multimode versions come with a zirconia ceramic ferrule. The FC pigtails are low back reflection and optical loss while ensuring maximum repeatability. FC fiber pigtails can use 9/125 single mode, 50/125 multimode, or 62.5/125 multimode fiber.
