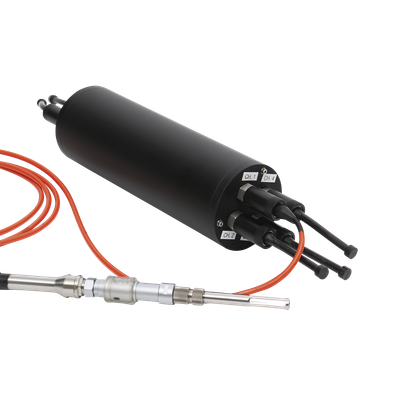

Unisense - Field DataLogger Mini System
A cost effective way of applying all our sensors in situ with deep sea rating to 6,000 m and long battery life. Measure H2S, O2, pH, Redox, H2, NO and N2O (50 m depth only). The Field DataLogger Mini enables studies of unique analytes, including studies utilizing fast responding sensors (seconds), giving you an opportunity to monitor and obtain unique data in a cost-effective way.
- 2 or 4 channels
- Down to 6,000 m depth
- Up to 20 days of deployment time
Measure unique analytes
The Field Datalogger Mini System offers
- 6,000 m depth rating
- 2 or 4 channel versions available
- Up to 20 days of deployment time
- Measure ultra low oxygen
- Export for SensorTrace Logger and CSV file
Measure ultra-low oxygen concentration (<10nM) with STOX sensor
The Field DataLogger Mini offers full STOX support and makes it possible for you to study ultra-low oxygen concentrations in e.g. oxygen minimal zones and other environments containing ultra-low oxygen. The STOX microsensor differs from the standard oxygen microsensor by having automatic zero calibration.
This enables the sensor to measure extremely low oxygen concentrations <10nM.
Link to ADV’s, CTD’s and other platforms
The flexibility of our Field DataLogger Mini enables you to integrate it into your current platform. Power your Field DataLogger Mini from your CTD, ADV or other source using a 6-28 V supply, and store and synchronize your measured data on your device via our 0-5 V analog output.
Easy setup and data export
Connect sensors, apply polarization and start measuring. After deployment, import data into SensorTrace Logger for visualization of raw and calibrated values. With SensorTrace Logger, you can export into e.g. Excel for further analysis.
