Icea - Model AFPAK20 -Field Erected Cooling Towers

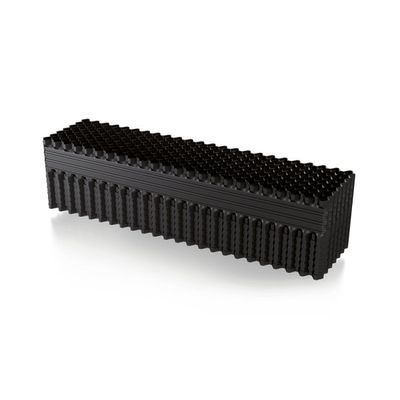

AFPAK20 module features a honeycomb structure with a maximized surface area. It is made of self-extinguishing, thermoformed PVC sheets that are solvent-bonded or welded together. The module’s unique design features vertical flutes in order to maintain optimal heat transfer efficiency and at the same time prevent clogging, even where there is relatively poor water quality. The properties of the material used offer the highest level of protection against chemical degradation and weather exposure.
We provide all the specific information to analyze the technical characteristics of the product.
- AFPAK20
- Sheet spacing 20 mm
- SELF-EXTINGUISHING PVC THAT MEETS ASTM STANDARD E-84
- CTI STANDARD 136
- Standard -5° + 60°
- High temperature -5° + 75°
- Low temperature -40° + 60°
- ength: from 900 mm to 2400 mm
- Width: up to 600 mm
- Depth: up to 600 mm
For non-standard sizes, please contact our technical office
- From 300 to 900 microns
- 145 m2/m3
- 97%
- Vertical flutes
- Heat treatment / evaporative cooling
- Filtration
- Purification
- Biological oxidation
- Industrial fluid separation
- Induced draft cooling towers with poor water quality or moderate water quality.
Sheets may be supplied for on-site assembly, which means a significant reduction in shipping costs.
- Self-extinguishing
- Lightweight and easy to move
- High compressive strength
- Resistant to chemical degradation and biological attack
- Enables continuous and widespread air-to-water contact
- Self-supporting structure
- High performance
