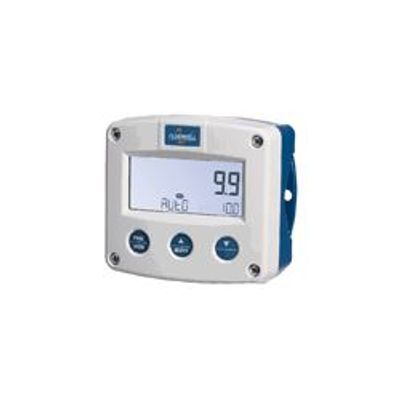

Fluidwell - Model F120 -Field Mount - Flow Rate Controller with Analog Control Output and High / Low Alarms
FromFluidwell bv
The F120 single loop controller has been designed to offer outstanding control performance and provide a reliable solution for a wide variety of flow control applications. The single loop flow controller accepts most pulse inputs from flowmeters and has a 4 - 20 mA output for controlling a valve or pump. The F120 is part of the Fluidwell process controller family and is the alternative for local control loops.
Most popular related searches
flow control
control valve
manual valve
hazardous area
manual control valve
flow meter
setpoint temperature controller
atmospheric temperature
flow monitoring
snow temperature
- Robust IP66, IP67 (NEMA Type4X) field enclosure. It is so rugged, you can even stand on it!
- Intrinsically Safe available - ATEX and IECEx approval for gas and dust applications.
- Programming can be done by your own crew, with the sensible menu-driven structure, saving cost and irritation. Know one, know them all!
- Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.
- Two control modes:
- Hand (manual valve control)
- Auto (control flow to obtain the desired flow rate)
- Bumpless transistion between the control modes.
- Flow rate monitoring: two alarm values can be set: low and high flow rate alarm.
- Alarm values can be changed by the operator or they can be password protected.
- Safety mode input to place the valve in a safe position
- Flow rate: seven 17mm (0.67") digits.
- Total - resettable: seven 17mm (0.67") digits.
- Displays clear alarm messages.
- LED backlight.
- Auto backup of settings, totalizer value, setpoint and control mode in EEPROM memory.
- Ambient temperature: -40°C to +80°C (-40°F to 176°F).
- Various accessories are available for this product.
- The F-Series is so rugged, even a truck can stand on it!
- The F-Series is your first and best choice for field mount indicators in safe and hazardous area applications. Especially in harsh weather conditions like rain, snow, salty atmospheres and temperatures between -40°C up to +80°C (-40°F up to 176°F).
- Applications where a constant liquid or gas flow is desired without the need to manually control the flow.
Power Supply
- Long life Lithium battery.
- 4 – 20mALoop-powered.
- 8 – 24V AC/DC.
- 115 – 230V AC.
- Basic: 8 - 30V DC.
Sensor Supply
- 3.2, 8.2, 12, 24V DC.
Flowmeter Inputs
- Pulse type inputs:
Reed-switch, open collector, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal. - (0)4 – 20mA.
Status Inputs
- Remote control: external reset for clearing total.
- Remote control: Safety mode which stops the control process and places the valve in a safe position.
Pulse Outputs
- None.
Alarm Outputs
- Function: Two alarm outputs for low and high flow rate alarm (not available with analog input).
- Type: Two passive NPN transistors, active PNP transistors or isolated electro-mechanical relays.
Analog Outputs
- Function: Control output to position the valve of the flow.
- Type: One passive isolated, floating or loop powered4 – 20mA output or one active(0)4 – 20mA or0 – 10V DC output.
