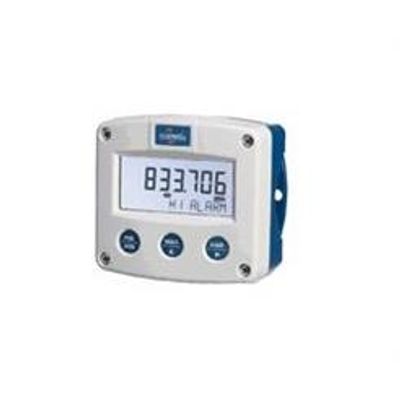

Fluidwell - Model F190 -Field Mount - General Purpose Monitor with Analog and High/Low Alarm Outputs
FromFluidwell bv
The F190 is a versatile multi-purpose indicator with continuous monitoring feature. Beside the focus on level, temperature and pressure applications, it also contains a range of other measuring units and even the posibility to create a custom unit with max. 8 characters. It offers the facility to set two low level and two high alarm values. If desired, an ignore function can be set up to allow for an incorrect measurement for a certain period of time.
Most popular related searches
hazardous area
temperature monitoring
atmospheric temperature
pressure level monitoring
pressure monitoring
level monitoring
snow temperature
field monitoring
- Robust IP66, IP67 (NEMA Type4X) field enclosure. It is so rugged, you can even stand on it!
- Intrinsically Safe available - ATEX and IECEx approval for gas and dust applications.
- Programming can be done by your own crew, with the sensible menu-driven structure, saving cost and irritation. Know one, know them all!
- Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.
- Displays actual value, % and measuring unit.
- 4 alarm values can be entered: low-low, low, high and high-high alarm.
- Large 17mm (0.67") digits.
- Wide range of engineering units for e.g. level, temperature and pressure and other applications
- Custom measuring unit with max. 8 characters.
- Full Modbus communication RS232/485/TTL.
- Loop or battery powered, 8 - 24V AC/DC or 115 - 230V AC power supply.
- Sensor supply 3 / 8.2 / 12 / 24V DC.
- Red flashing LED backlight in case of alarm.
- Ambient temperature: -40°C to +80°C (-40°F to 176°F).
- Various accessories are available for this product.
- The F-Series is so rugged, even a truck can stand on it!
- The F-Series is your first and best choice for field mount indicators in safe and hazardous area applications. Especially in harsh weather conditions like rain, snow, salty atmospheres and temperatures between -40°C up to +80°C (-40°F up to 176°F).
- For monitoring a wide range of process paramaters like flow (linear or square root), level, pressure and temperature measurements, even with signal re-transmission or serial communication available.
Power Supply
- Long life Lithium battery.
- 4 – 20mALoop-powered.
- 8 – 24V AC/DC.
- 115 – 230V AC.
- Basic: 8 - 30V DC.
Sensor Supply
- 8.2, 12, 24V DC.
General Purpose Inputs
- (0)4 – 20mA.
Pulse Outputs
- None.
Alarm Outputs
- Function: Configurable alarm outputs for low-low, low, high, high-high or all combined level alarms.
- Type: Up to three passive NPN transistors or active PNP transistors or up to four isolated electro-mechanical relays.
Analog Outputs
- Function: Re-transmitting the actual value - the output can be scaled to any range (e.g. 2.5 m³ to 1400.0 m³).
