Fluidwell bv

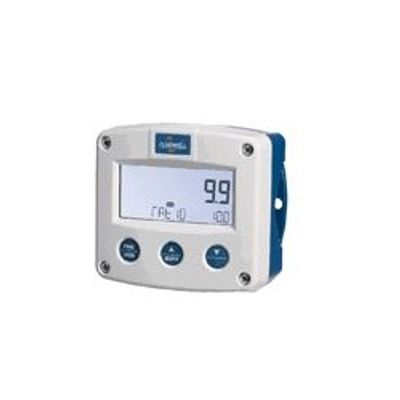

Fluidwell - Model F124 -Field Mount - Ratio Controller with Analog Control Output and High / Low Alarms
FromFluidwell bv
The F124 ratio controller has been designed to ensure that two flows are kept at the same ratio even if flows are changing. The Fluidwell ratio controller will show a strong influence of maintaining a good and constant quality of products and saves money on the blending components. The F124 is a key product of the Fluidwell Process Controller family and is the alternative to replace existing pneumatic controllers in local control loops.
Most popular related searches
setpoint temperature controller
manual valve
hazardous area
flow control
manual control valve
control valve
atmospheric temperature
flow meter
flow modeling
snow temperature
- Robust IP66, IP67 (NEMA Type4X) field enclosure. It is so rugged, you can even stand on it!
- Intrinsically Safe available - ATEX and IECEx approval for gas and dust applications.
- Programming can be done by your own crew, with the sensible menu-driven structure, saving cost and irritation. Know one, know them all!
- Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.
- Calculates and controls the ratio between flow A and flow B. Formula: ratio = additive / main
- Three control modes:
- Hand (manual valve control)
- Local Setpoint (control additive flow only)
- Ratio (control additive flow to obtain the desired ratio).
- Bumpless transistion between the control modes.
- Displays actual and desired ratio simultaneously, flow rate A and flow rate B.
- Safety mode to place the valve in a safe position
- Analog output to control the position of the valve.
- Ratio: seven 17mm (0.67") digits, displayed as percentage. Desired ratio: five 8mm (0.31") digits.
- Flow rate A and B: seven 17mm (0.67") digits.
- Ratio monitoring: two alarm values can be set: low and high ratio alarm.
- Displays clear alarm messages.
- LED backlight.
- Auto backup of settings, setpoint and control mode in EEPROM memory.
- Ambient temperature: -40°C to +80°C (-40°F to 176°F).
- Various accessories are available for this product.
- The F-Series is so rugged, even a truck can stand on it!
- The F-Series is your first and best choice for field mount indicators in safe and hazardous area applications. Especially in harsh weather conditions like rain, snow, salty atmospheres and temperatures between -40°C up to +80°C (-40°F up to 176°F).
- Applications where a constant ratio between a main flow and an addititve flow is desired (e.g. applications like glueing, blending or mixing) without the need to manually control the additive flow.
Alternative basic model: F114.
Power Supply
- Long life Lithium battery.
- 4 – 20mAOutput loop-powered.
- 8 – 24V AC/DC.
- 115 – 230V AC.
- Basic: 8 - 30V DC.
Sensor Supply
- 3.2, 8.2, 12, 24V DC.
Flowmeter Inputs
- Pulse type inputs: Reed-switch, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal. Different pulse signal types are allowed for input A and B.
- (0)4 – 20mA.
Status Inputs
- Remote control: Safety mode which stops the control process and places the valve in a safe position.
Pulse Outputs
- None.
Alarm Outputs
- Function: Two alarm outputs for low and high ratio alarm.
- Type: Two passive NPN transistors, active PNP transistors or isolated electro-mechanical relays.
Analog Outputs
- Function: Control output to position the valve of the additive flow.
- Type: One passive isolated, floating or loop powered4 – 20mA output or one active(0)4 – 20mA or0 – 10V DC output.
