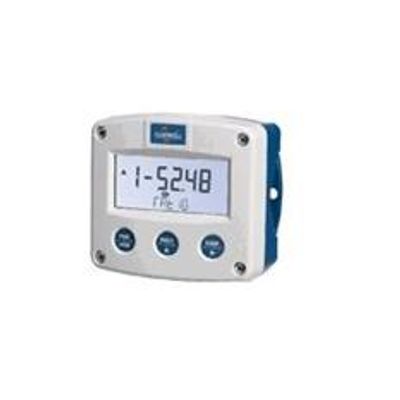

Fluidwell - Model F114 -Field Mount - Ratio monitor / Totalizer with High/Low Alarms and Analog Outputs

FromFluidwell bv

SHARE

The F114 flow computer calculates the actual ratio between two separate flows. It offers the ability to set one low ratio and one high ratio alarm value. Special precautions are taken to allow start-up problems and incorrect ratio readings for a certain period of time. Based on the location of the flowmeters, a selection can be made out of six different formulas. The display shows the ratio, alarm values, flow rate A, total A and flow rate B, total B. On-screen engineering units are easily configured from a comprehensive selection. The ratio can be displayed as 1:__ or as a percentage.

Most popular related searches

flow rate totalizer

flow calculator

atmospheric temperature

field monitoring

snow temperature

Robust IP66, IP67 (NEMA Type4X) field enclosure. It is so rugged, you can even stand on it!
Intrinsically Safe available - ATEX and IECEx approval for gas and dust applications.
Programming can be done by your own crew, with the sensible menu-driven structure, saving cost and irritation. Know one, know them all!
Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.

Calculates ratio between flow A and B.
Displays ratio, flow rate A and B and total A and B.
Ratio monitoring: two alarm values can be set: low and high ratio alarm.
Alarm values can be changed by the operator or they can be password protected.
Six ratio calculation formulas.
Ratio: seven 17mm (0.67") digits, displayed as 1:__ or percentage.
Flow rate A and B: seven 17mm (0.67") digits.
Total A and B - resettable: seven 17mm (0.67") digits.
Separate engineering units for flow rate and total on the display.
Up to three configurable alarm outputs.
Displays clear alarm messages.
LED backlight.
Auto backup of settings and running totals in EEPROM memory.
Ambient temperature: -40°C to +80°C (-40°F to 176°F).
Various accessories are available for this product.
The F-Series is so rugged, even a truck can stand on it!

The F-Series is your first and best choice for field mount indicators in safe and hazardous area applications. Especially in harsh weather conditions like rain, snow, salty atmospheres and temperatures between -40°C up to +80°C (-40°F up to 176°F).
Mixing or blending of two components where continuous ratio displaying, monitoring and totalising is important. For example in construction works, roof or wall isolation, gluing and coating.
Alternative advanced model: F124.

Power Supply

Long life Lithium battery.
4 – 20mAOutput loop-powered.
8 – 24V AC/DC.
115 – 230V AC.
Basic: 8 - 30V DC.

Sensor Supply

3.2, 8.2, 12, 24V DC.

Flowmeter Inputs

Pulse type inputs:
Reed-switch, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal.
Different pulse signal types are allowed for input A and B.

Pulse Outputs

None.

Alarm Outputs

Function: Configurable alarm outputs for low, high or both combined combined ratio alarms.
Type: Up to three passive NPN transistors, active PNP transistors or isolated electro-mechanical relays.

Analog Outputs

Function: Re-transmitting the actual ratio, flow rate A or flow rate B - the output can be scaled to any range (e.g. 1:5 to 1:100 or 200 L/min to 1200 L/min).
Type: One passive isolated, floating or loop powered4 – 20mA output or one active(0)4 – 20mA or0 – 10V DC output.
