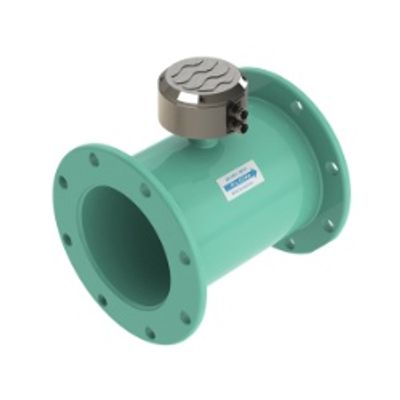

McCrometer - Model Ultra Mag -Field-Proven Electromagnetic Flanged Flow Meter
An advanced, leading edge mag meter - the Ultra Mag flow meter sets a new standard for performance, ease-of-use, and value.
It is designed for the needs of industrial water and wastewater industries – specifically for conductive liquids, slurries, and sludge. Debris / solids will not clog the line. These mag meters use a non-intrusive measurement element and are excellent in harsh environments requiring minimal maintenance. The Ultra Mag flow meter is ideal in water well production, pump stations, industrial / municipal water & wastewater, and more.
Performance Advantages
The Ultra Mag requires only 1D upstream and 0D downstream of most flow disturbers, and still maintains up to ±0.5% accuracy across a large flow range. In addition, the meter has:
- No obstructions to the flow
- No moving parts to wear or break
- Maintenance free
- Bi-directional flow
- Wide Flow range
- Separate power and signal cables
NSF-approved UltraLiner™ Provides Excellent Protection
The mag flow meter`s unique NSF-approved UltraLiner provides superior electrical insulation, as well as excellent protection against corrosion and abrasion.
Unique Wafer Style Allows Easy Retrofit
The Ultra Mag comes in a wafer style which provides a reduced physical footprint, allowing for our meters to be retrofitted into existing infrastructure.
Custom-Build Saves Time and Money
Only McCrometer offers a truly customized meter built to fit your application, reducing labor during installation, and ultimately saving you money. Specifically, we offer:
- Special Lay Lengths
- Flanged end connections (ANSI and AWWA)
- Meter or Remote Mounted Converter
- Custom Cable lengths up to 500 ft.
- Quick Connection sensor fitting to make installations easier
- ISO 9001:2015 certified quality management system
- Certified by MET to UL 61010-1
- Certified by MET C22.2 No. 61010-1-04
- NEC & CEC: Class 1, Division 2, Groups A-D, Groups A-D, T5
- NEC & CEC: Class 2, Zone 2, Groups A-D, T5
Supports the Following Applications
Clean Water
- Well Water
- Potable Water
- Pump Solutions
- Rate-of-Flow Control
- Raw Water Transmission
Industrial Water
- Raw Water
- Chilled Water
- Cooling Water
- Process Control
- Effluent Wastewater
Wastewater
- Influent
- Effluent
- Reclaimed
- Lift Stations
- Waste Activated Sludge
- Return Activated Sludge
- Accuracy: ±0.5% of actual flow
- Calibration: Pre-programmed and pre-calibrated to user`s specific applications
- Diagnostics: Test mode and self-diagnostics
- Line size: From 2" to 48"
- Range: From 0.2 FPS - 32 FPS
- Repeatability: ±0.05% to ±.0008 ft/s (±0.25 mm/s), whichever is greater
