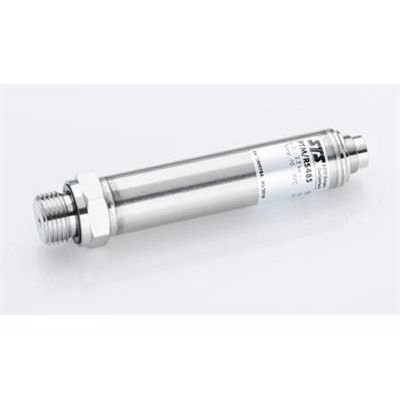

STS - Model PTM/RS485 -Fieldbus & Digital Pressure Transmitter

Pressure measuring range: 100 mbar … 1000 bar. Adjustable 1:4 of the nominal range within -5% to +105% (analog output). Accuracy: ≤ ± 0.25 / 0.10 % FS. Temperature measuring range: -25 … 85°C. Operating temperature: -25 … 85°C. Process temperature: -40 … 150°C. 2 Output signals (p & T): 4 … 20 mA. Interface: RS485. Materials: Stainless steel, Titanium.
