KF 100 -Automatic Chamber Filter Press

Our automatic filter press is equipped with a hydraulic plate transport and drip plate, which is operated by means of a PLC control. The filter press is closed and opened with a double-acting hydraulic cylinder.

Most popular related searches

automatic filter press

chamber filter press

filter press

acting hydraulic cylinder

FILOX - individual solutions tailored to your requirements

The automatic plate transport is hydraulically driven and regulated with the help of a pressure sensor. The low-maintenance plate transport trolleys are guided on side stainless steel profiles.
The light barrier or protective grille is installed on our filter presses in accordance with the applicable safety guidelines.
The automatic drip tray can be driven hydraulically or pneumatically. Execution as swivel or scissor device.
Our automatic filter press is operated via a PLC control. The visualization takes place via a button screen or via a touch panel.

Additional products:

Discharge funnel
Screw / twin screw conveyor
Operating platforms / operating platforms
Tilting containers and roll containers for cake dropping
Feed pumps
Special designs in container systems
Mobile chamber filter presses
Heating plate for filter cake drying

Filox - Model KF 063/KF 080/KF 100 -Automatic Chamber Filter Press

Product Details

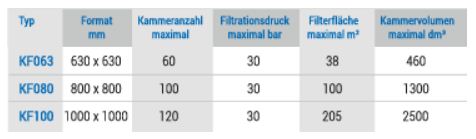

Technical Specification
