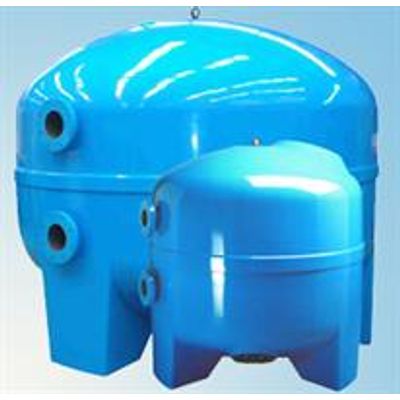

Calplas - Model FB - Ø 1.010 – 3.000 mm -Filter
Laminated polyester reinforced with fiberglass (GRP) filter. Polyester flanged lateral connections. Design according to needs (diffusers according to filtering media used, connections, etc …). Designs according to filtering media used (Sand, activated carbon, AFM, etc...). Different chemical barriers according to needs (Ionic exchanger, anionic exchanger (ANION), cationic exchanger (CATION), softener, denitrification, etc...). Different chemical barriers depending on the regeneration or fluids in the vessel (Caustic soda (NaOH), Hydrocloric acid (HCl), Sulfuric acid (H2SO4), etc... ).
Emptying hole
Plasticized steel lid. GAS threaded PVC plug.
Legs
Polyester closed legs. Check anchorage system
Top distribution
Top polyester diffuser with PVC pipes
Bottom distribution
Polypropylene distribution with PVC pipes. Distribution according to requirements / media (Sand, active carbon, etc...)
Connections
Polyester casted GAS threads and flanges. Check for other standards (ANSI, JIS ...)
Lifting device
Steel lifting device
Elliptical manhole
Polyester casted elliptical manhole. Internal pressure locking. Manhole orientation according to needs
- Body Laminated polyester reinforced with fiberglass (GRP)
- Connections Polyester casted threads / flanges
- Design pressure 2.5 / 4 / 5 / 6 kg/cm²
- Purge
- Elliptical manhole
- Emptying hole
- Lifting device
- Polyester diffuser
Sight glass
GAS threaded methacrylate sight glass. Threads casted in polyester
Name plate support
Customizable measures based on customers requests
Nozzle plate
GRP nozzle plate, built together with the end. KSH polypropylene nozzles. 0.2 or 0.5 mm slots
Other distributions
Distribution based on customer needs
Pipe support
Stainless steel pipe support
Handhole
GRP hand hole. Plasticized steel lid
Anchorage system
Direct anchorage system to ground. Ask for other anchorage systems
Aditional connections
Aditional connections (flanges or threads) for filling, emptying, etc
