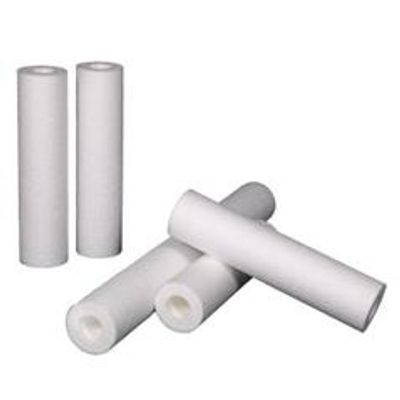

Puris-Fine - Filter Cartridges

It`s easy and safe to incinerate or dispose used cartridges. The cartridges are manufactured by high-tech melt-blowing machines result in a consistent quality and graded pore structure. Its graded pore structure enhances dirt holding capacity and filtration efficiency. In addition, Puris-Fine series filter cartridges are free of surfactants, binders and adhesives. It has an excellent advantage of non-fiber releasing, which indeed delivers superior performance. Materials are FDA graded. Manufactured under a certified ISO 9001 quality system. NSF certified.

Materials of Construction

• Filter Media: Melt Blown Polypropylene
• End Caps: Polypropylene
• Gaskets/O-Rings: PE Gaskets, Silicone, Buna-N, EPDM, Viton

Dimensions

• Outside Diameter: 2.5" (63mm)
• Inside Diameter: 1.1" (28mm)
• Lengths: 10", 20", 30", 40", 50"

Retention Ratings

• 0.5, 1, 3, 5, 10, 20, 30, 50, 75, 100 µm

Operating Conditions

• Maximum Differential Pressure:
• 50 psid (3.45 bar) @ ambient
• 25 psid (1.72 bar) @ 140°F (60°C)
• Recommended Change Out Differential Pressure: 35psid (2.4 bar)
