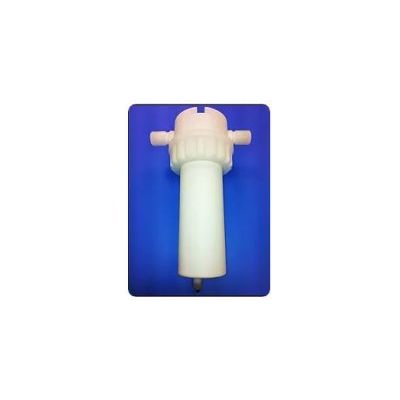

SAT - Filter Housing

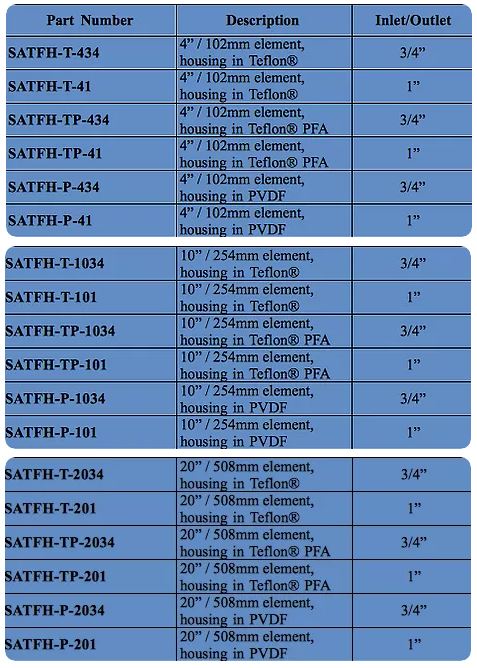

SAT Filter Housings are designed to provide excellent mechanical characteristics without utilizing any metallic components. The SAT Housing accommodates 4”/102 mm., 10”/254 mm. and 20”/508mm. filter cartridges up to 3.25”/82.5mm in diameter. The connections are molded or manufacturing directly into the head and bowl (no leaks’ risk), reducing the space required for fit up. These housings are designed and manufacturing in cleanroom to meet the stringent cleanliness requirements of ultrapure applications by utilizing Teflon, Teflon PFA, PVDF for all wetted components. It is suitable for acids, solvents and d.i. water.
