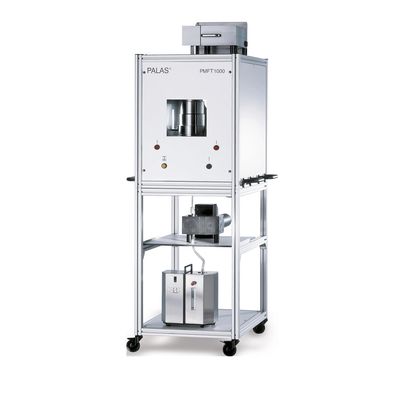

Palas MFP system - Filter Media Test Rig

The MFP filter test rig is a modular filter testing system for flat filter media and small mini-filters. The MFP 1000 can be used to determine:

pressure loss curve on the medium without a dust coating,
fraction separation efficiency, or
burden and fraction separation efficiency during application of the burden
within shortest times – reliably and therefore cost-effectively.

The corresponding aerosol generator can be used depending on the standard or application.

All technical parameters as well as more information: https://www.palas.de/en/product/mfp

MFP 1000 - Fast and economical quality control and development of flat media with dust, oil or salt starting at 120 nm. Versions MFP 1000 HEPA for EN 1822-3 and ISO 29463-3

MFP 2000 - Fast and economical quality control and development of flat media with dust, oil or salt starting at 200 nm

MFP 3000 - Modular filter media test rig for fractional efficiency, differential pressure, dust holding capacity and gravimetrical efficiency in suction mode. Version HF with temperature and humidity control

MFP 4000 with two Promo® aerosol spectrometers for simultaneous determination of fraction separation efficiency
