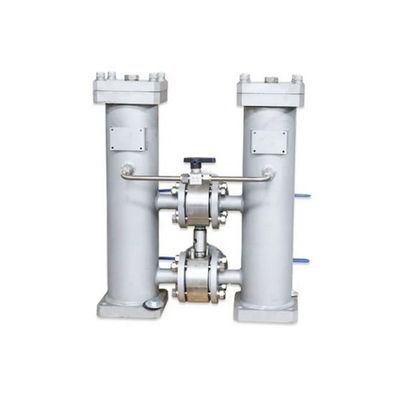

VIKING - Model VKSL0060 -Filter Oil Post-Treatment Nas5-8

Design Flow

It refers to the maximum flow rate under which the pressure loss of the filter shell does not exceed 0.15 bar when the lubricating oil flows through the series of filters.

Pressure Loss

Refers to the pressure difference before and after the filter medium flows through the filter. It is necessary to calculate whether the type selection is appropriate according to the pressure loss.

Recommended pressure loss limits: steel industry ≤ 0.5bar, Petro-chemical ≤ 0.35bar

• Port: Shanghai, China
• Production Capacity: 100sets/Month
• Payment Terms: L/C, T/T
• Structure: Fixed
• Usage: Solid-Liquid Separation
• Type: Press Filter
• Mechanical Principle: Pressure Filtration
• Oil Post-Treatment: Nas5-8
• Design Flow Rate: 60L / Min

• Model NO. : VKSL0060
• Design Pressure : 16bar
• Interface Size : DN25
• Connection : Flange Connection
• Transfer Valve Type : Ball Valve
• Trademark : VIKING
• Transport Package : Sea Packing
• Origin : Changzhou, Jiangsu, P. R. China
