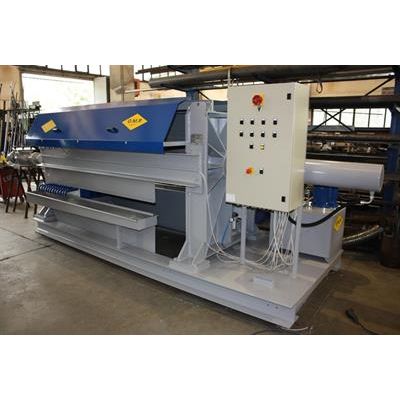

OMP - Model FP 1000 -Filter Press

Main technical features: N1 Frame made of HEA 200 beams joined by welds. N°2 Box-like fixed heads made in thick sheet, joined by TIG welds. N°1 Mobile head having the same characteristics of the fixed ones, sliding on treated steel castors and guides made from the tie rods that connect the fixed heads. N°1 Hydraulic cylinder Ø200 mm. N°1 Hydraulic gearbox, 7.5 kW and maximum pressure of 200 Bar. N°1 Laminar bundle consisting in a minimum of 6 plates with a maximum pressure of 16 bar, made in polypropylene and coated with polypropylene filtering elements. Plants can be customised in terms of number of plates fitted on the laminar bundle.
