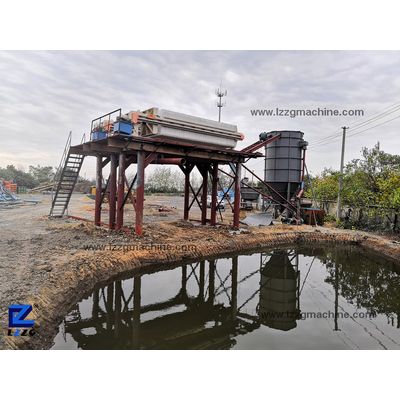

LZZG - Model G Series -Filter Press for Sand Washing Sludge Treatment
The filter press is a fully-automated system for sludge water treatment for sand washing plant, concrete manufacturing plant, industry wastewater. does not require operator assistance and in most cases, no additional chemicals are needed. The sludge is sent to every sealed filter chamber by the feeding pump with pressure, going into filter plates and filter cloths. The clean water will be filtered out from the filter plate water outlet by the filter cloth, but the solid is kept in the chambers to separate solid and liquid, finally, we will get the slurry cake to contain 25% water.
When the Filter press is operated, the sludge is discharged from the feed inlet into the filter cylinder and is moved to the discharge port by the push of the spiral shaft rotary vane. The pitch is gradually reduced, so the pressure of the sludge is also increased, and the pressure difference is started to be dehydrated, and the water is from the fixed ring and the activity.
The annular piece is filtered out of the gap, and the filter press depends on the self-cleaning function between the fixed plate and the movable plate, and the clearance between the filter and the filter is prevented from being blocked. After fully dehydrated, the discharge is discharged from the discharge port under the action of the propeller shaft.
- Providing efficient cleaning support to sludge accumulated in wastewater.
- The machine works on the principle of pressure feeding that provides for optimum output support.
- Supports a reduction in moisture content of sludge significantly.
- Working as the solid-liquid separation device, the system can also be custom tuned as per the specific work process needs of customers.
- Suitable for dewatering low and high concentrated sludge.
