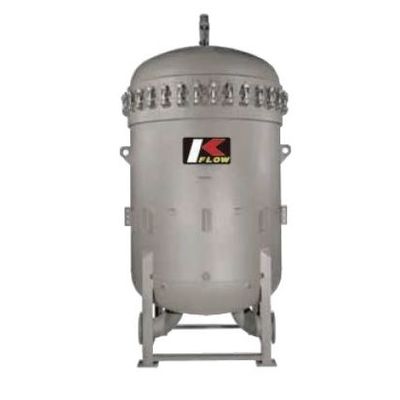

K-Flow - Model FWS -Filter Water Separator System
K-Flow filter water separators is a vessel containing filter / coalesce and separator elements that continuously removes dirt and water from aviation jet fuel / diesel / light oil to levels acceptable for servicing modern aircraft and vehicles. A filter water separator can have either a vertical or a horizontal configuration and multiple stages. Vessel are designed and built in accordance with the strict engineering guidelines and pressure vessel regulations.
Most popular related searches
automatic air vent
differential pressure indicator
glass level gauge
pressure relief valve
flow control valve
drain valve
control valve
water filter
automatic drain valve
relief valve
- Design code: ASME Sec. VIII, Div.1 & API/IP 1581 lately edition.
- Nominal micron rating 0.5 ~ 25 micron, etc.
- Maximum differential pressure: 1.0 bar (15 psi)
- Admissible operating temperature -30 ~ +80 ?
- Construction: Carbon steel or stainless steel
- Options: ASME U stamped, Differential pressure indicator & Switch & Transmitter, Sampling probe, Automatic air vent with check valve, Pressure relief valve, Sight glasses (level gauges), Water slug control valve, Rate flow control valve, Flange float pilot & automatic eater drain valve, Drain valve.
- Jet fuels / Diesel fuels / Light oils
