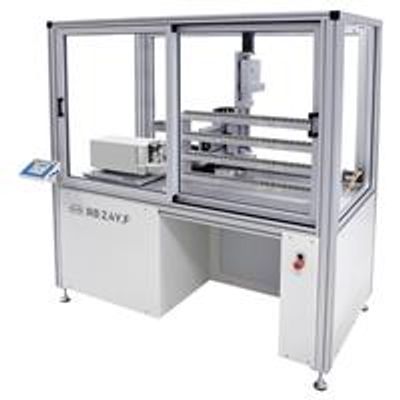

Radwag - Model RB 2.4Y.F -Filter Weighing Robotic Balance

• Maximum capacity [Max]: 2.1g search
• Readability [d]: 0.1µg

Faster Measurement with the New CPU
RB 2.4Y.F robotic balance features Dual Core 2×1 GHz processor which delivers noticeable performance improvements including faster operation and shorter stabilization time wherein high repeatability values are retained.

16 GB RAM – Greater Data Management Possibilities
16 GB RAM means possibility of recording data in a form of complex reports. Time and statistic data diagrams on series of weighments are another useful option.

Remote Control Operation
Wireless Connection module offers wireless transfer of data recorded by 4Y balance to any portable device powered by iOS or Android systems, using special applications intended for data management.

Data Safety
Every single 4Y balance features ALIBI memory designed to provide protection and automatic recording of your measurements. Options such as data preview, copying and archiving are also
available to users.

Defined Profiles
`Defined profiles` is a new function, it automatically sets weighing instrument`s parameters in accordance with user requirements.

Profiles:

• FAST – the measurement result is obtained in a very short time
• FAST DOSING – the balance quickly reacts to mass changes, especially useful for dosing or adding more product to the dispensed portion
• PRECISION - balance settings providing the minimum standard deviation
• USER - customization of the parameters in accordance with operator`s requirements.

External Adjustment
To guarantee measurement reliability and precision, external adjustment with use of weights of different mass (50, 100, 200 mg) is enabled.

Ambient Conditions Monitoring
RB 2.4Y.F robotic balance is equipped with top-class thermo-hygro-barometers allowing to test ambient conditions in real time and in different points (e.g. in weighing chamber, mass standard magazine, etc.). The characteristic feature of the device is high repeatability of pressure (0.001 hPa), humidity (0.01%), and temperature (0.001 °C).

Electronic level indicator

• Functions:
• ALARM function
• graphic level indicator
• programmable acceptable tilts

Data exchange through

• USB storage devices
• update balance software
• export weighing data
• export/import databases
• export/import balance settings
• exchange data between balances

Infrared proximity sensors

• Optional functions:
• PRINT function
• TARE function
• sensor`s sensitivity adjustment

Portability

• Extra option:
• Balances with
• a wireless terminal

Interfaces

• Ethernet
• 2×USB
• 2×RS 232
• 4 in / 4 out
• WiFi 2,4GHz b,g,n

• Maximum capacity [Max]: 2.1 g
• Readability [d]: 0.1 µg
• Tare range: -2.1 g
• Verification scale interval: 1 mg
• Repeatability (5% Max): 0.25 µg
• Repeatability (Max): 1 - 2 µg
• Linearity: ≤ 1.5 µg
• Stabilization time: 10 - 20 s
• Adjustment: external
• OIML Class: I
• Display: 5.7” resistive colour touchscreen
• Touch-free operation: 2 IR Sensors
• Communication interface: 2×RS232, 2×USB, Ethernet, 4 IN / 4 OUT (digital)
• Power supply: 100 ÷ 240 V AC 50 / 60 Hz
• Power consumption max.: 10 W
• Operating temperature: +10 ÷ +40 °C
• Storage temperature: -20 ÷ +50 °C
• Working temperature change rate: ±0.3°C/1h (±1°C/8h)
• Atmospheric humidity: 40% ÷ 80%
• Atmospheric humidity change rate: ±1%/h (±4%/8h)
• Keypad: 8 przycisków
• Device dimensions: 2070×1070×1800 mm
• Packaging dimensions: 1960×1190×2050 mm
• Net weight: 400 kg
• Gross weight: 500 kg
